HR10G-10R-12S(71)

Active

Hirose Electric USA, Inc.

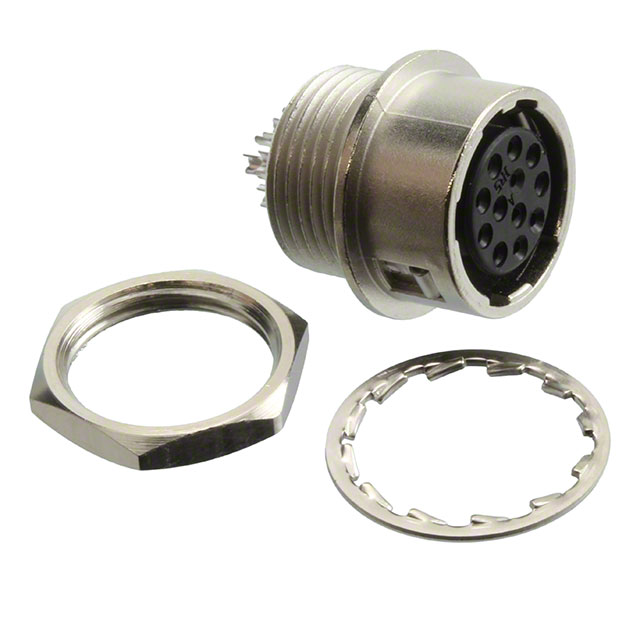

CIRCULAR CONNECTOR, 12 CONTACT(S), ZINC ALLOY AND BRASS, FEMALE, SOLDER TERMINAL, RECEPTACLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HR10G-10R-12S(71)

Active

Hirose Electric USA, Inc.

CIRCULAR CONNECTOR, 12 CONTACT(S), ZINC ALLOY AND BRASS, FEMALE, SOLDER TERMINAL, RECEPTACLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HR10G-10R-12S(71)

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Phosphor Bronze
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	10
Shielding	Shielded
Voltage Rating	100 VAC, 140 VDC

HR10G Series

Part	Contact Material	Shell Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Current Rating (Amps)	Connector Type	Shell Size - Insert	Primary Material	Color	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Shell Finish	Shielding	Contact Finish - Mating	Material Flammability Rating	Fastening Type	Mounting Feature	Mounting Type	Termination	Backshell Material, Plating	Features	Contact Type	Housing Color	Contact Shape	Note	Contact Size	Type
Hirose Electric USA, Inc. HR10G-10R-12S(71)	Phosphor Bronze	Zinc Alloy	12	-25 °C	85 °C	Nylon Polyamide (PA)	2 A	Receptacle Female Sockets	10	Metal	Silver	100 VAC 140 VDC	78.7 µin	2 µm	Keyed	Nickel	Shielded	Silver	UL94 V-0	Push-Pull	Bulkhead - Rear Side Nut
Hirose Electric USA, Inc. HR10G-7R-4S(74)	Phosphor Bronze	Zinc Alloy	4	-25 °C	85 °C	Nylon Polyamide (PA)	2 A	Receptacle Female Sockets	7	Metal	Silver	150 VAC 200 V	8 Áin	0.203 Ám	Keyed	Nickel	Shielded	Gold	UL94 V-0	Push-Pull	Bulkhead - Rear Side Nut
Hirose Electric USA, Inc. HR10G-7R-6SB(74)	Phosphor Bronze	Zinc Alloy	6	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	2 A	Receptacle Female Sockets	7	Metal	Silver	100 VAC 140 VDC	8 Áin	0.203 Ám	Keyed	Nickel	Shielded	Gold	UL94 V-0	Push-Pull	Bulkhead - Rear Side Nut	Panel Mount Through Hole	Solder
Hirose Electric USA, Inc. HR10G-7R-6P(73)	Brass	Zinc Alloy	6	-25 °C	85 °C	Nylon Polyamide (PA)	2 A	Male Pins Receptacle	7	Metal	Silver	100 VAC 140 VDC	78.7 µin	2 µm	Keyed	Nickel	Shielded	Silver	UL94 V-0	Push-Pull	Bulkhead - Rear Side Nut
Hirose Electric USA, Inc. HR10G-10R-10P(73)	Brass	Zinc Alloy	10	-25 °C	85 °C	Nylon Polyamide (PA)	2 A	Male Pins Receptacle	10	Metal	Silver	100 VAC 140 VDC	78.7 µin	2 µm	Keyed	Nickel	Shielded	Silver	UL94 V-0	Push-Pull	Bulkhead - Rear Side Nut
Hirose Electric USA, Inc. HR10G-10R-12P(73)	Brass	Zinc Alloy	12	-25 °C	85 °C	Nylon Polyamide (PA)	2 A	Male Pins Receptacle	10	Metal	Silver	100 VAC 140 VDC	78.7 µin	2 µm	Keyed	Nickel	Shielded	Silver	UL94 V-0	Push-Pull	Bulkhead - Rear Side Nut
Hirose Electric USA, Inc. HR10G-10R-12P(74)	Brass	Zinc Alloy	12	-25 °C	85 °C	Nylon Polyamide (PA)	2 A	Male Pins Receptacle	10	Metal	Silver	100 VAC 140 VDC	8 Áin	0.203 Ám	Keyed	Nickel	Shielded	Gold	UL94 V-0	Push-Pull	Bulkhead - Rear Side Nut
Hirose Electric USA, Inc. HR10G-7J-4P(74)	Brass	Zinc Alloy	4	-25 °C	85 °C	Nylon Polyamide (PA)	2 A	Jack Male Pins	7	Metal	Silver	150 VAC 200 V	8 Áin	0.203 Ám	Keyed	Nickel	Shielded	Gold	UL94 V-0	Push-Pull		Free Hanging (In-Line)		Brass Nickel	Backshell Clamp Strain Relief
Hirose Electric USA, Inc. HR10G-7R-4PC(73)		Zinc Alloy	4	-20 C	85 °C	Polybutylene Terephthalate (PBT)		Receptacle Housing	7						Keyed	Nickel	Shielded		UL94 V-0	Push-Pull	Bulkhead - Rear Side Nut					Crimp	Silver	Circular	Contacts Not Included	1 mm	For Male Pins
Hirose Electric USA, Inc. HR10G-10R-10SB(71)	Phosphor Bronze	Zinc Alloy	10	-25 °C	85 °C	Polybutylene Terephthalate (PBT)	2 A	Receptacle Female Sockets	10	Metal	Silver	100 VAC 140 VDC	78.7 µin	2 µm	Keyed	Nickel	Shielded	Silver	UL94 V-0	Push-Pull	Bulkhead - Rear Side Nut	Panel Mount Through Hole	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.50
		20	$ 10.35
		40	$ 9.50
		100	$ 9.25
		260	$ 8.25
		500	$ 7.75
		1000	$ 6.85

Description

General part information

HR10G Series

12 Position Circular Connector Receptacle, Female Sockets Solder Cup
