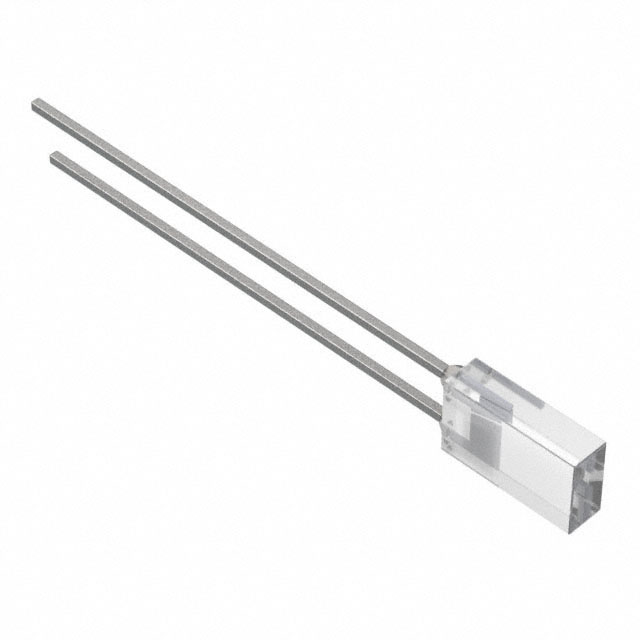

5219743F
ActiveDIALIGHT
LED GRN/RED DIFF RECT 2X4MM T/H
Deep-Dive with AI
Search across all available documentation for this part.
5219743F
ActiveDIALIGHT
LED GRN/RED DIFF RECT 2X4MM T/H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5219743F |
|---|---|
| Color | Red, Green |
| Configuration | Bidirectional |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 7.01 mm |
| Lens Color | White |
| Lens Size [x] | 3.99 mm |
| Lens Size [y] | 2.03 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 5.6 mcd, 5.6 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | Rectangular 2mmx4mm |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) | 2 V, 2.1 V |
| Wavelength - Dominant | 569 nm, 621 nm |
| Wavelength - Peak | 565 nm, 630 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.92 | |
| 10 | $ 0.56 | |||
| 100 | $ 0.38 | |||
| 500 | $ 0.30 | |||
| 1000 | $ 0.28 | |||
| 2000 | $ 0.26 | |||
| 5000 | $ 0.24 | |||
| 10000 | $ 0.23 | |||
| 25000 | $ 0.22 | |||
Description
General part information
5219743 Series
Green, Red 569nm Green, 621nm Red LED Indication - Discrete 2.1V Green, 2V Red Radial
