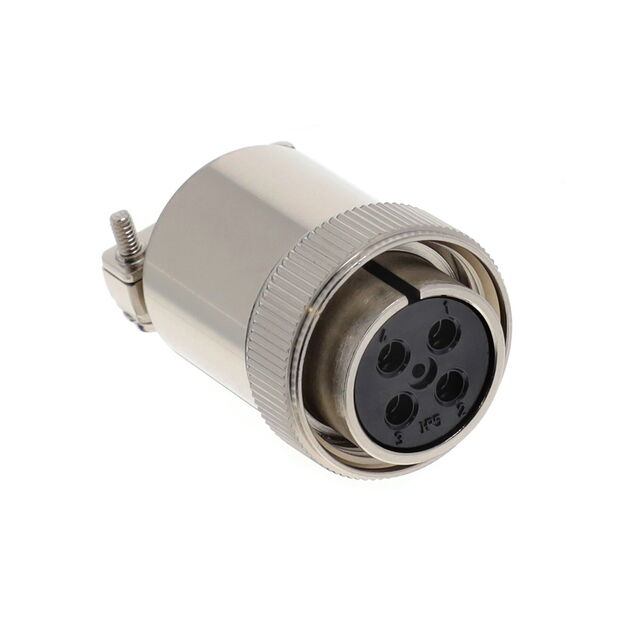

RM15TP-4SA(81)

Active

Hirose Electric USA, Inc.

CONN PLUG FMALE 4POS SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RM15TP-4SA(81)

Active

Hirose Electric USA, Inc.

CONN PLUG FMALE 4POS SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RM15TP-4SA(81)

Cable Opening [custom]	11.5 mm
Cable Opening [custom]	0.453 in
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Size - Insert	15
Shielding	Unshielded
Termination	Solder

RM15TP Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shell Size - Insert	Current Rating (Amps)	Mounting Type	Connector Type	Number of Positions	Voltage Rating	Cable Opening [custom]	Cable Opening [custom]	Color	Material Flammability Rating	Features	Insert Material	Backshell Material, Plating	Contact Material	Shell Material	Shell Finish	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Shielding	Termination
Hirose Electric USA, Inc. RM15TP-10PH	-25 °C	85 °C	Keyed	15	5 A	Free Hanging (In-Line)	Male Pins Plug	10	350 VAC 490 VDC
Hirose Electric USA, Inc. RM15TP-4PA(71)	-25 °C	85 °C	Keyed	15	10 A	Free Hanging (In-Line)	Male Pins Plug	4	500 VAC 700 VDC	0.453 in	11.51 mm	Silver	UL94 V-0	Backshell Cable Clamp Coupling Nut	Diallyl Phthalate (DAP)	Brass Nickel	Brass	Brass	Nickel	Silver	78.7 µin	2 µm	Metal
Hirose Electric USA, Inc. RM15TP-8PH(81)	-25 °C	85 °C	Keyed	15	5 A	Free Hanging (In-Line)	Male Pins Plug	8	500 VAC 700 VDC	0.453 in	11.5 mm	Silver	UL94 V-0	Backshell Cable Clamp Coupling Nut	Diallyl Phthalate (DAP)	Brass Nickel	Copper Alloy	Brass	Nickel	Silver			Metal	Unshielded
Hirose Electric USA, Inc. RM15TP-8PH	-25 °C	85 °C	Keyed	15	5 A	Free Hanging (In-Line)	Male Pins Plug	8	500 VAC 700 VDC
Hirose Electric USA, Inc. RM15TP-10S(71)	-25 °C	85 °C	Keyed	15	5 A	Free Hanging (In-Line)	Female Sockets Plug	10	350 VAC 490 VDC	0.453 in	11.51 mm	Silver	UL94 V-0	Backshell Cable Clamp Coupling Nut	Diallyl Phthalate (DAP)	Brass Nickel	Copper Alloy	Brass	Nickel	Silver	196.9 µin	5 µm	Metal
Hirose Electric USA, Inc. RM15TP-2SA	-25 °C	85 °C	Keyed	15	10 A	Free Hanging (In-Line)	Female Sockets Plug	2	600 VAC 840 VDC
Hirose Electric USA, Inc. RM15TP-10S	-25 °C	85 °C	Keyed	15	5 A	Free Hanging (In-Line)	Female Sockets Plug	10	350 VAC 490 VDC
Hirose Electric USA, Inc. RM15TP-4SA(81)	-25 °C	85 °C	Keyed	15	10 A	Free Hanging (In-Line)	Female Sockets Plug	4		0.453 in	11.5 mm				Polyphenylene Sulfide (PPS)		Copper Alloy			Silver			Metal	Unshielded	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 20.55
		20	$ 18.00
		40	$ 16.66
		100	$ 16.11
		260	$ 15.22
		500	$ 14.78

Description

General part information

RM15TP Series

4 Position Circular Connector Plug, Female Sockets Solder
