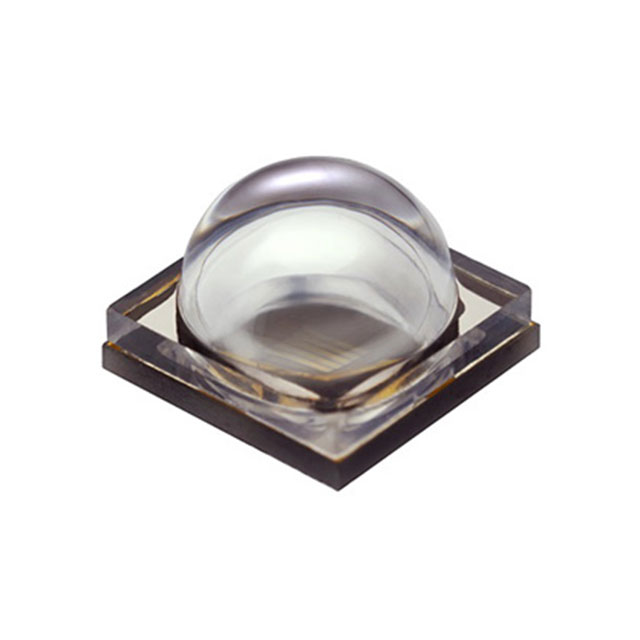

ZEUBE265-1DA-TR
ActiveStanley Electric Co
EMITTER UVC 265NM 70MW
Deep-Dive with AI
Search across all available documentation for this part.
ZEUBE265-1DA-TR
ActiveStanley Electric Co
EMITTER UVC 265NM 70MW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZEUBE265-1DA-TR |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 500 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 3535 Metric |
| Package / Case | 1414 |
| Type | Ultraviolet (UV) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 6.9 V |
| Wavelength [Max] | 269 nm |
| Wavelength [Min] | 259 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 41.98 | |
| 10 | $ 34.41 | |||
| Digi-Reel® | 1 | $ 41.98 | ||
| 10 | $ 34.41 | |||
| Tape & Reel (TR) | 100 | $ 30.05 | ||
| 200 | $ 29.14 | |||
| 300 | $ 28.68 | |||
Description
General part information
ZEUBE265 Series
Ultraviolet (UV) Emitter 265nm (259nm ~ 269nm) 6.9V 500mA 120° 1414 (3535 Metric)
Documents
Technical documentation and resources
No documents available
