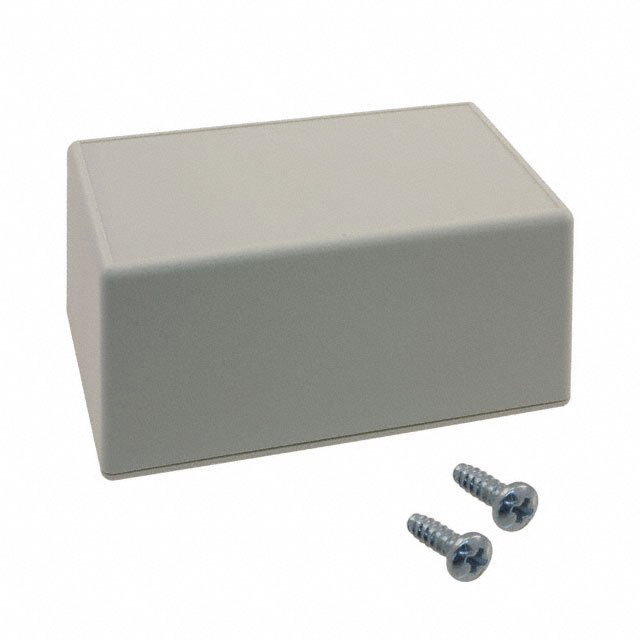

023I,AL

Active

Serpac

BOX ABS ALMOND 4.1"L X 2.6"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 4.1"L X 2.6"W

Technical Specifications

Parameters and characteristics for this part

Specification	023I,AL

Area (L x W)	10.7 in²
Area (L x W)	69 cm²
Color	Almond
Container Type	Box
Features	PCB Supports
Height [z]	48.26 mm
Height [z]	1.9 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	104.14 mm
Size / Dimension [x]	4.1 "
Size / Dimension [y]	2.6 "
Size / Dimension [y]	66.04 mm
Thickness	2.54 mm
Thickness	0.1 in

Part	Material	Container Type	Thickness	Thickness	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Features	Color	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Material Flammability Rating	Ratings	Design
Serpac 023I,BK	Plastic ABS	Box	2.54 mm	0.1 in	10.7 in²	69 cm²	48.26 mm	1.9 in	PCB Supports	Black	2.6 "	66.04 mm	104.14 mm	4.1 "	UL94 HB	IP40 NEMA 1
Serpac 023I,GY	Plastic ABS	Box	2.54 mm	0.1 in	10.7 in²	69 cm²	48.26 mm	1.9 in	PCB Supports	Gray	2.6 "	66.04 mm	104.14 mm	4.1 "	UL94 HB	IP40 NEMA 1	Cover Included Hand Held
Serpac 023I,AL	Plastic ABS	Box	2.54 mm	0.1 in	10.7 in²	69 cm²	48.26 mm	1.9 in	PCB Supports	Almond	2.6 "	66.04 mm	104.14 mm	4.1 "	UL94 HB	IP40 NEMA 1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.32

General part information

Box Plastic, ABS Almond 4.100" L x 2.600" W (104.14mm x 66.04mm) X 1.900" (48.26mm)
