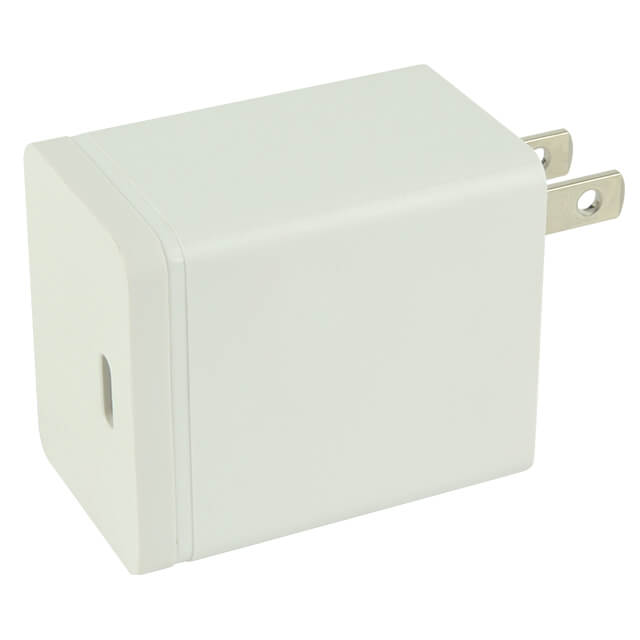

SWC27-T5912-NW

Active

CUI Inc.

AC/DC WALL MT ADPT 5V/9V/12V 27W

Search across all available documentation for this part.

Active

CUI Inc.

AC/DC WALL MT ADPT 5V/9V/12V 27W

Technical Specifications

Parameters and characteristics for this part

Specification	SWC27-T5912-NW

Applications	ITE (Commercial)
Approval Agency	PSE, FCC, cULus
Current - Output (Max)	2.25 A, 3 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	USB C Receptacle
Power (Watts)	27 W
Region Utilized	North America
Size / Dimension [x]	1.74 "
Size / Dimension [x]	44.2 mm
Size / Dimension [y]	1.31 "
Size / Dimension [y]	33.2 mm
Size / Dimension [z]	52.5 mm
Size / Dimension [z]	2.07 in
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V, 5 V, 9 V
Weight	0.196 lb
Weight	88.9 g

Part	Output Connector	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Region Utilized	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	No Load Power Consumption [Max]	Form	Power (Watts)	Approval Agency	Input Type	Voltage - Output	Applications	Weight	Weight	Input Connector	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max)
CUI Inc. SWC27-T5912-NW	USB C Receptacle	CoC Tier 2 Level VI	40 °C	0 °C	North America	1.74 "	44.2 mm	1.31 "	52.5 mm	2.07 in	33.2 mm	75 mW	Wall Mount (Class II)	27 W	cULus FCC PSE	Fixed Blade	5 V 9 V 12 V	ITE (Commercial)	0.196 lb	88.9 g	NEMA 1-15P	90 VAC	264 VAC	2.25 A 3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1000	$ 22.00

General part information

5V, 9V, 12V 27 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
