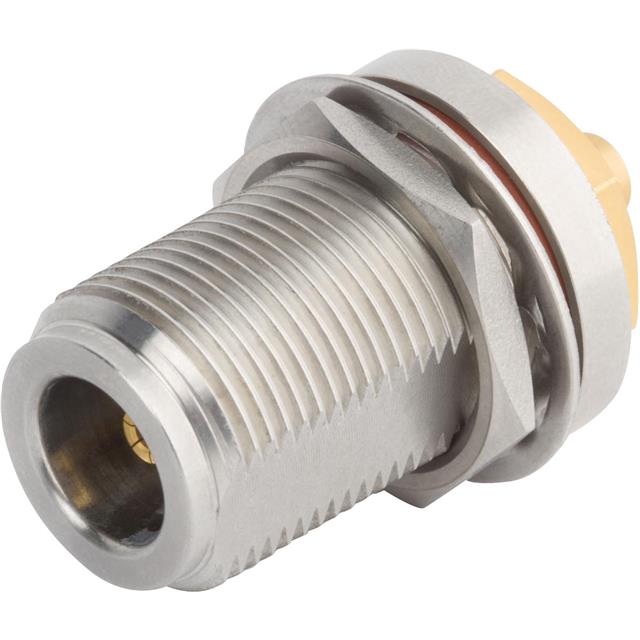

SF6545-6017
ActiveAmphenol SV Microwave
CONN PN JACK STR 50OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SF6545-6017
ActiveAmphenol SV Microwave
CONN PN JACK STR 50OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF6545-6017 |
|---|---|
| Body Material | Stainless Steel |
| Cable Group | 0.085 in |
| Cable Group | RG-405 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | PN |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polystyrene (PS) |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 25 | $ 150.11 | |
Description
General part information
SF6545 Series
PN Connector Jack, Female Socket 50 Ohms Panel Mount Solder
