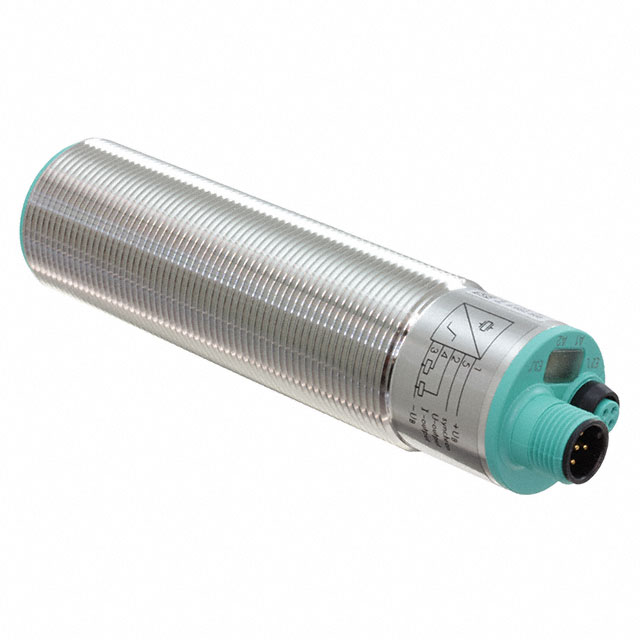

UC500-30GM-IUR2-V15
ActivePEPPERL+FUCHS
ULTRASONIC SEN 30-500MM ANALOG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UC500-30GM-IUR2-V15
ActivePEPPERL+FUCHS
ULTRASONIC SEN 30-500MM ANALOG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UC500-30GM-IUR2-V15 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP65 |
| Material - Body | Stainless Steel |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | Analog Current and Voltage |
| Package / Case | Cylinder, Threaded - M30 |
| Sensing Distance [Max] | 19.685 in |
| Sensing Distance [Max] | 500 mm |
| Sensing Distance [Min] | 1.181 " |
| Sensing Distance [Min] | 30 mm |
| Sensor Type | Ultrasonic |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 596.98 | |
| 10 | $ 577.44 | |||
Description
General part information
UC500 Series
ULTRASONIC SEN 30-500MM ANALOG
