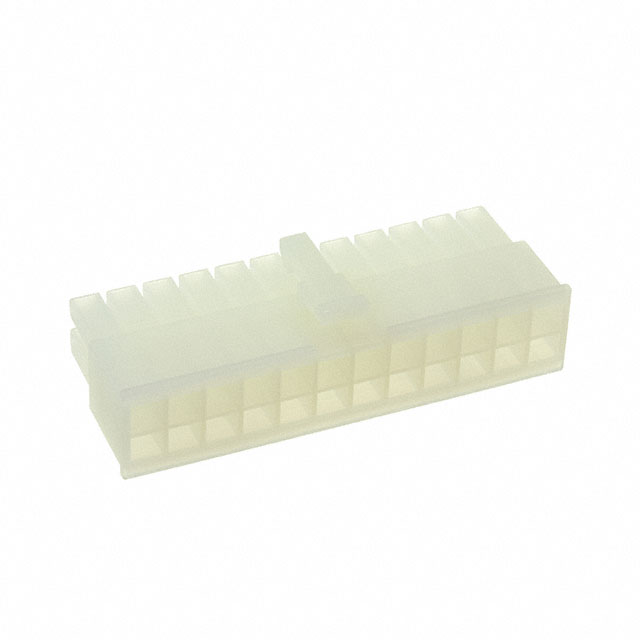

DMH-24
ActiveAdam Tech
CONN RCPT HSG 24POS 4.20MM
Deep-Dive with AI
Search across all available documentation for this part.
DMH-24
ActiveAdam Tech
CONN RCPT HSG 24POS 4.20MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DMH-24 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 4.2 mm |
| Pitch [x] | 0.165 in |
| Row Spacing | 4.2 mm |
| Row Spacing | 0.165 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.95 | |
| 10 | $ 0.73 | |||
| 100 | $ 0.56 | |||
| 500 | $ 0.47 | |||
Description
General part information
DMH Series
24 Rectangular Connectors - Housings Receptacle Natural 0.165" (4.20mm)
