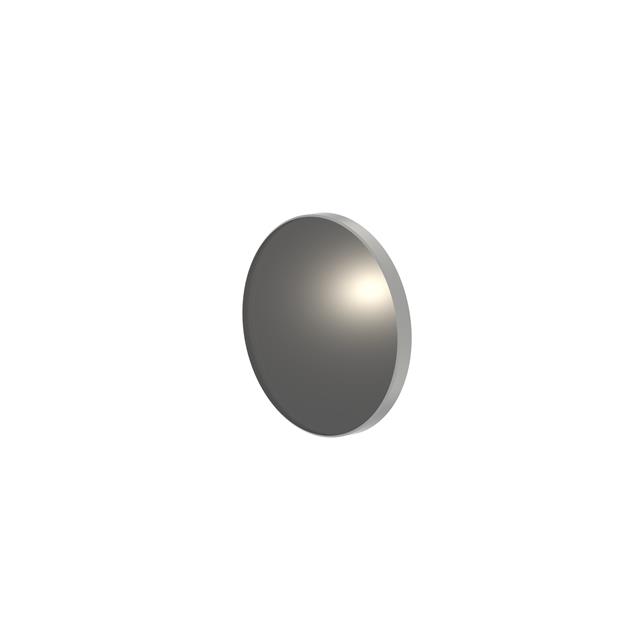

G371143000

Active

Excelitas Technologies

NEUTRAL FILTER; T=5%; D=22.4

Search across all available documentation for this part.

Active

Excelitas Technologies

NEUTRAL FILTER; T=5%; D=22.4

Technical Specifications

Parameters and characteristics for this part

Part	Clear Aperture	Optical Density	Transmission	Wavelength [Max]	Wavelength [Min]	Optic Diameter [diameter]
Excelitas Technologies G371140000	20 mm	0.3	50 %	2000 nm	400 nm	22.4 mm
Excelitas Technologies G371141000	20 mm	0.7	20 %	2000 nm	400 nm	22.4 mm
Excelitas Technologies G371142000	20 mm	1		2000 nm	400 nm	22.4 mm
Excelitas Technologies G371144000	20 mm	1.7	2 %	2000 nm	400 nm	22.4 mm
Excelitas Technologies G371146000	20 mm	3	0.1 %	2000 nm	400 nm	22.4 mm
Excelitas Technologies G371148000	20 mm	0.4	40 %	2000 nm	400 nm	22.4 mm
Excelitas Technologies G371145000	20 mm	2	1 %	2000 nm	400 nm	22.4 mm
Excelitas Technologies G371143000	20 mm	1.3	5 %	2000 nm	400 nm	22.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 45.00

General part information

NEUTRAL FILTER; T=5%; D=22.4

Technical documentation and resources
