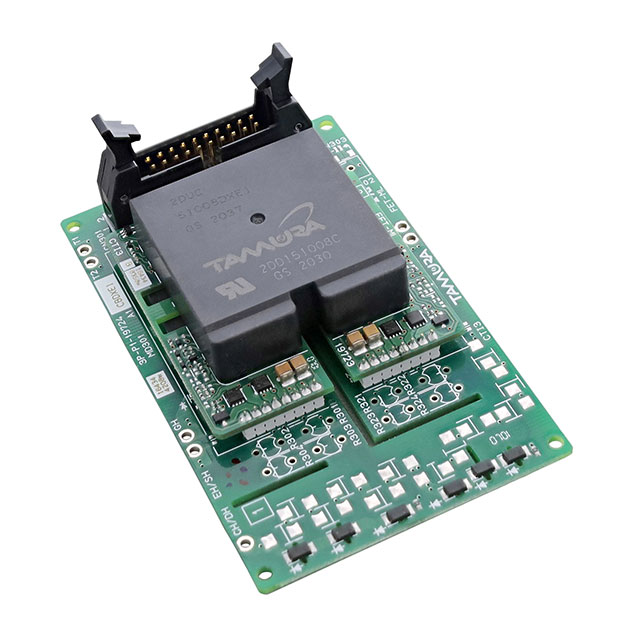

2DUC51008DXE1
ActiveTamura
IC GATE DRVR HALF-BRIDGE MODULE
Deep-Dive with AI
Search across all available documentation for this part.
2DUC51008DXE1
ActiveTamura
IC GATE DRVR HALF-BRIDGE MODULE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2DUC51008DXE1 |
|---|---|
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Gate Type | IGBT |
| Input Type | Non-Inverting |
| Mounting Type | Chassis Mount |
| Number of Drivers | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Supplier Device Package | Module |
| Voltage - Supply [Max] | 28 V |
| Voltage - Supply [Min] | 13 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 55.65 | |
Description
General part information
2DUC51008 Series
Half-Bridge Gate Driver IC Non-Inverting Module
Documents
Technical documentation and resources
No documents available
