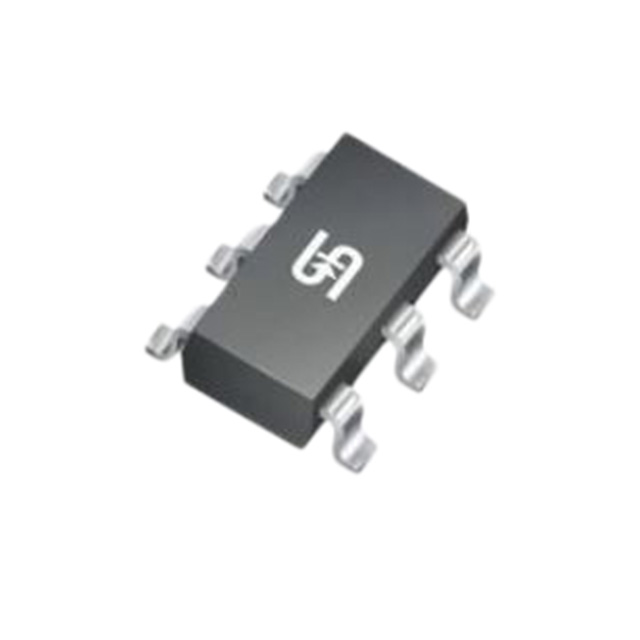

BAT54AD REG

Active

Taiwan Semiconductor Corporation

DIODE ARR SCHOT 30V 200MA SOT363

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BAT54AD REG

Active

Taiwan Semiconductor Corporation

DIODE ARR SCHOT 30V 200MA SOT363

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BAT54AD REG

Current - Average Rectified (Io) (per Diode)	200 mA
Current - Reverse Leakage @ Vr	2 µA
Diode Configuration	2 Pair Common Anode
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	6-TSSOP, SC-88, SOT-363
Reverse Recovery Time (trr)	5 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOT-363
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	1 V

BAT54 Series

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Capacitance @ Vr, F	Current - Average Rectified (Io)	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Speed	Speed	Reverse Recovery Time (trr)	Supplier Device Package	Current - Reverse Leakage @ Vr	Technology	Package / Case	Mounting Type	Diode Configuration	Current - Average Rectified (Io) (per Diode)
Taiwan Semiconductor Corporation BAT54 RFG	30 V	1 V	10 pF	200 mA	-55 °C	125 °C	Any Speed	200 mA	5 ns	SOT-23	2 µA	Schottky	SC-59 SOT-23-3 TO-236-3	Surface Mount
Taiwan Semiconductor Corporation BAT54CD REG	30 V	1 V			-65 C	125 °C	Any Speed	200 mA	5 ns	SOT-363	2 µA	Schottky	6-TSSOP SC-88 SOT-363	Surface Mount	2 Pair Common Cathode	200 mA
Taiwan Semiconductor Corporation BAT54C RFG	30 V	1 V			-55 °C	125 °C	Any Speed	200 mA	5 ns	SOT-23	2 µA	Schottky	SC-59 SOT-23-3 TO-236-3	Surface Mount	1 Pair Common Cathode	200 mA
Taiwan Semiconductor Corporation BAT54AD	30 V	1 V			-65 C	125 °C	Any Speed	200 mA	5 ns	SOT-363	2 µA	Schottky	6-TSSOP SC-88 SOT-363	Surface Mount	2 Pair Common Anode	200 mA
Taiwan Semiconductor Corporation BAT54T REG	30 V	1 V			-65 C	125 °C	Any Speed	200 mA	5 ns	SOT-363	2 µA	Schottky	6-TSSOP SC-88 SOT-363	Surface Mount	3 Independent	200 mA
Taiwan Semiconductor Corporation BAT54BR-G REG	30 V	1 V			-65 C	150 °C	Any Speed	200 mA	5 ns	SOT-363	2 µA	Schottky	6-TSSOP SC-88 SOT-363	Surface Mount	2 Pair Series Connection	200 mA
Taiwan Semiconductor Corporation BAT54AD-G	30 V	1 V			-65 C	150 °C	Any Speed	200 mA	5 ns	SOT-363	2 µA	Schottky	6-TSSOP SC-88 SOT-363	Surface Mount	2 Pair Common Anode	200 mA
Taiwan Semiconductor Corporation BAT54AD REG	30 V	1 V			-65 C	125 °C	Any Speed	200 mA	5 ns	SOT-363	2 µA	Schottky	6-TSSOP SC-88 SOT-363	Surface Mount	2 Pair Common Anode	200 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BAT54 Series

Diode Array 2 Pair Common Anode 30 V 200mA (DC) Surface Mount 6-TSSOP, SC-88, SOT-363
