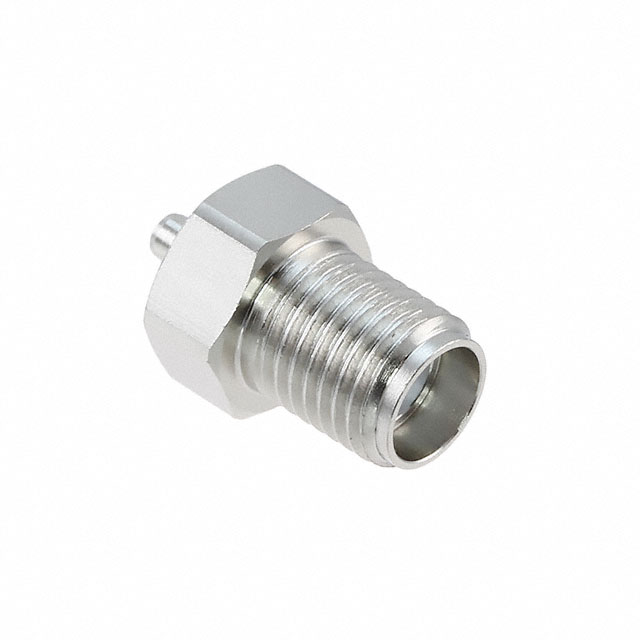

HRM.J-ML51.J-A

Active

Hirose Electric USA, Inc.

CONN ADAPT SMA JACK TO ML51 JACK

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN ADAPT SMA JACK TO ML51 JACK

Technical Specifications

Parameters and characteristics for this part

Specification	HRM.J-ML51.J-A

Adapter Series	SMA to ML51
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	ML51 Jack, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	200
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Body Finish	Center Contact Plating	Fastening Type	Center Contact Material	Frequency - Max [Max]	Convert From (Adapter End)	Adapter Type	Style	Mating Cycles	Convert To (Adapter End)	Impedance	Mounting Type	Conversion Type	Body Material	Adapter Series	Dielectric Material
Hirose Electric USA, Inc. HRM.J-ML51.J-A	Nickel	Gold	Snap-On Threaded	Beryllium Copper	4 GHz	Female Socket SMA Jack	Jack to Jack	Straight	200	Male Pin ML51 Jack	50 Ohms	Free Hanging (In-Line)	Between Series	Stainless Steel	SMA to ML51	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To ML51 Jack, Male Pin 50 Ohms
