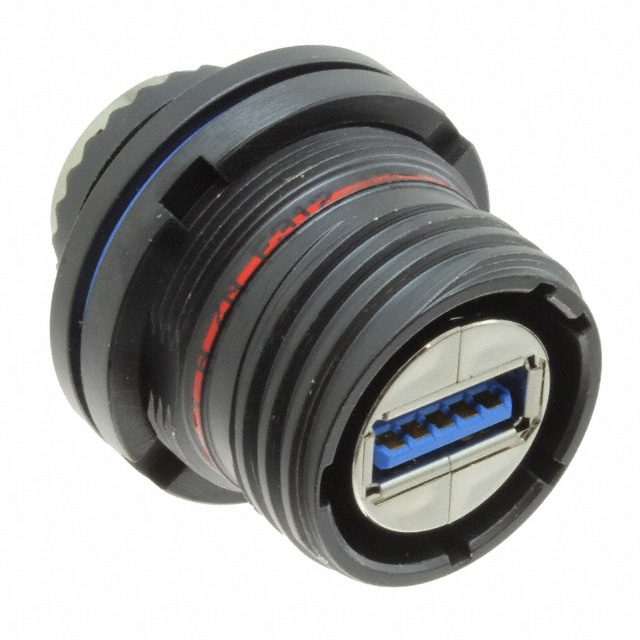

USB3FTV7AZNF312
ActiveAmphenol Socapex
CONN RCP USB3.0 TYPEA 9P PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
USB3FTV7AZNF312
ActiveAmphenol Socapex
CONN RCP USB3.0 TYPEA 9P PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | USB3FTV7AZNF312 |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Features | Circular Threaded Coupling |
| Gender | Receptacle |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Contacts | 9 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Aluminum |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 212.58 | |
| 10 | $ 166.40 | |||
| 25 | $ 151.83 | |||
| 50 | $ 142.02 | |||
Description
General part information
USB3FTV7 Series
USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Panel Mount
Documents
Technical documentation and resources
