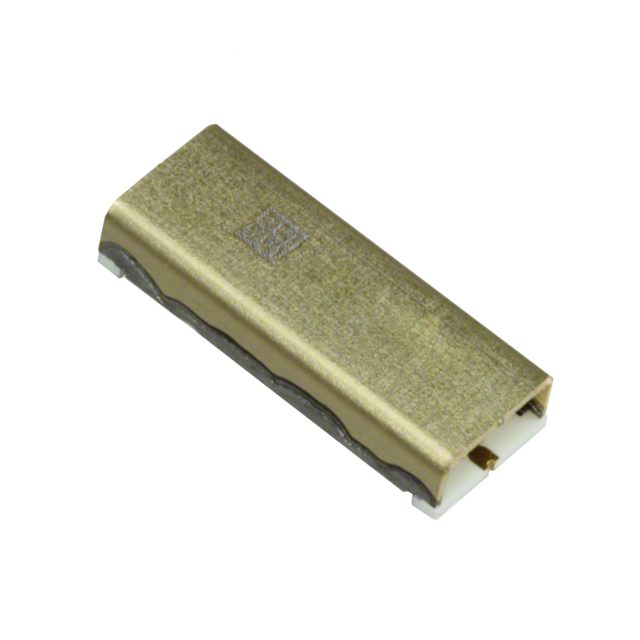

H080XHXS
ActiveKnowles Johanson Manufacturing
RF FILTER HI PASS 15.25GHZ 8SMD
Deep-Dive with AI
Search across all available documentation for this part.
H080XHXS
ActiveKnowles Johanson Manufacturing
RF FILTER HI PASS 15.25GHZ 8SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H080XHXS |
|---|---|
| Filter Type | High Pass |
| Frequency | 15.25 GHz |
| Height (Max) | 2.36 mm |
| Height (Max) [Max] | 0.093 in |
| Insertion Loss | 2 dB |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, No Lead |
| Size / Dimension [x] | 0.45 in |
| Size / Dimension [x] | 0.45 in |
| Size / Dimension [y] | 0.2 " |
| Size / Dimension [y] | 5.08 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 152.74 | |
| 10 | $ 124.53 | |||
| 25 | $ 118.12 | |||
Description
General part information
H080XH Series
15.25GHz Center Frequency High Pass RF Filter (Radio Frequency) Bandwidth 2dB 8-SMD, No Lead
