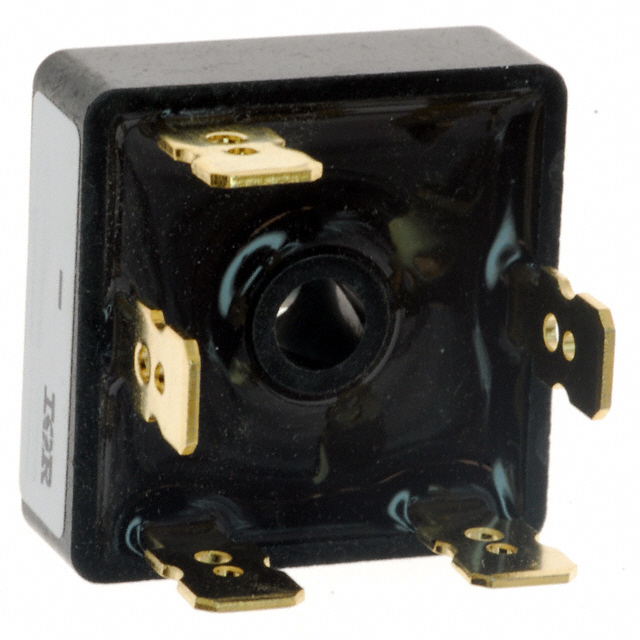

VS-26MT160
ActiveVishay General Semiconductor - Diodes Division
BRIDGE RECT 3P 1.6KV 25A D-63
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VS-26MT160
ActiveVishay General Semiconductor - Diodes Division
BRIDGE RECT 3P 1.6KV 25A D-63
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VS-26MT160 |
|---|---|
| Current - Average Rectified (Io) | 25 A |
| Current - Reverse Leakage @ Vr | 100 µA |
| Diode Type | Three Phase |
| Mounting Type | QC Terminal |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 5-Square, D-63 |
| Supplier Device Package | D-63 |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 1.6 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.19 | |
| 20 | $ 17.94 | |||
| 100 | $ 15.69 | |||
| 500 | $ 13.39 | |||
Description
General part information
26MT160 Series
Bridge Rectifier Three Phase Standard 1.6 kV QC Terminal D-63
