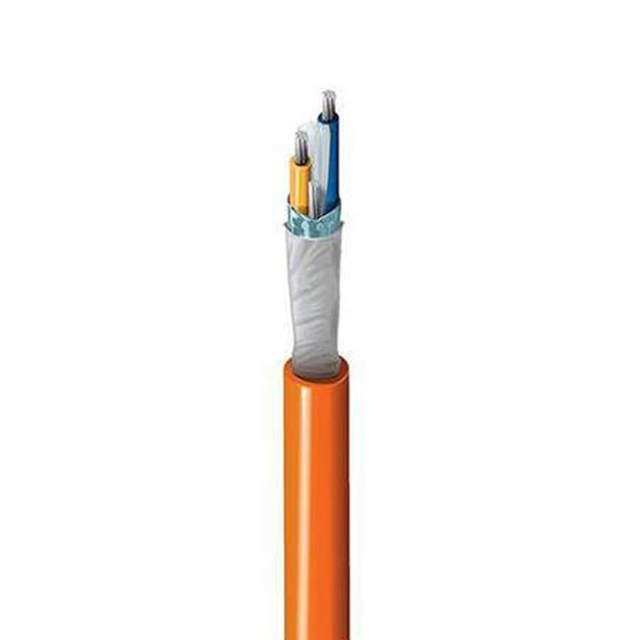

1327A 0061000 - MFG_1327A-0061000

1327A 0061000

Active
Belden Inc.

MULTI-PAIR 4COND 18AWG BLU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCabling Solutions for Industrial ApplicationsDatasheet
1327A 0061000 - MFG_1327A-0061000

1327A 0061000

Active
Belden Inc.

MULTI-PAIR 4COND 18AWG BLU

Deep-Dive with AI

DocumentsCabling Solutions for Industrial ApplicationsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification1327A 0061000
Cable TypeMulti-Pair
Conductor InsulationPolyolefin (PO)
Conductor MaterialCopper, Tinned
Conductor Strand [custom]26 AWG
Conductor Strand [custom]7
FeaturesOil Resistant, Drain Wire
Jacket (Insulation) Diameter0.44 in
Jacket (Insulation) Diameter11.18 mm
Jacket (Insulation) MaterialPoly-Vinyl Chloride (PVC)
Jacket ColorBlue
Length1000 ft
Length304.8 m
Number of Conductors4
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Shield Coverage100 %
Shield MaterialAluminum
Shield TypeFoil
Voltage300 V
Wire Gauge18 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeySpool 1000$ 3.42

Description

General part information

1327A Series

4 (2 Pair) Conductor Multi-Pair Cable Blue 18 AWG Foil 1000.0' (304.8m)
