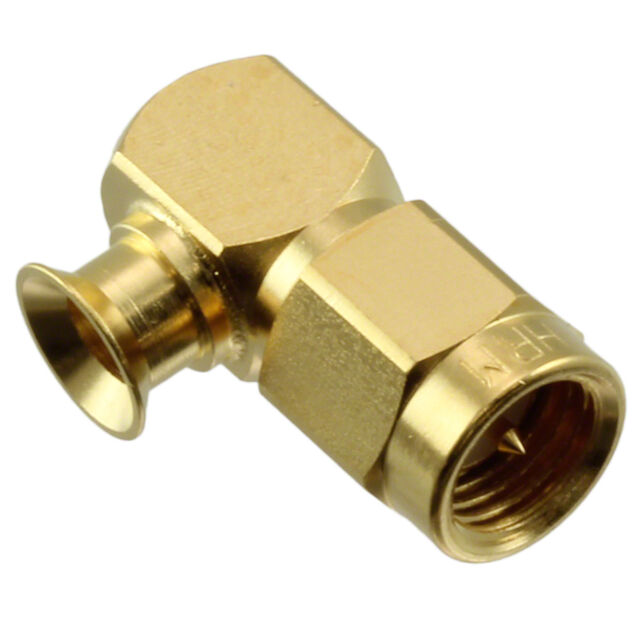

HRM-104(40)

Active

Hirose Electric USA, Inc.

CONN SMA PLUG R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN SMA PLUG R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	HRM-104(40)

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.1 dB
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

Part	Insertion Loss	Housing Color	Mounting Type	Body Material	Mating Cycles	Dielectric Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Center Contact Plating	Frequency - Max [Max]	Shield Termination	Contact Termination	Center Contact Material	Connector Style	Connector Type	Number of Ports
Hirose Electric USA, Inc. HRM-104(40)	0.1 dB	Gold	Free Hanging (In-Line) Right Angle	Stainless Steel	1000	Polytetrafluoroethylene (PTFE)	Gold	-55 °C	125 °C	50 Ohms	Gold	12.4 GHz	Solder	Solder	Brass	SMA	Male Pin Plug	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
