A07ZR07ZR28H51B

Active

JST Sales America Inc.

JUMPER 07ZR-8M-P - 07ZR-8M-P 2"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 07ZR-8M-P - 07ZR-8M-P 2"

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Color	Length	Length	Number of Positions	Cable Termination	Number of Rows	Contact Finish	Pitch - Connector	Pitch - Connector	Length	Length	Length [x]	Length [x]	Length [x]
JST Sales America Inc. A07ZR07ZR28H305A	Socket to Socket Reversed	Gray Individual	1 ft	304.8 mm	7	IDC	1	Tin	0.059 "	1.5 mm
JST Sales America Inc. A07ZR07ZR28H152A	Socket to Socket Reversed	Gray Individual		152.4 mm	7	IDC	1	Tin	0.059 "	1.5 mm	6 "	0.5 '
JST Sales America Inc. A07ZR07ZR28H152B	Socket to Socket	Gray Individual		152.4 mm	7	IDC	1	Tin	0.059 "	1.5 mm	6 "	0.5 '
JST Sales America Inc. A07ZR07ZR28H203B	Socket to Socket	Gray Individual	0.667 ft	203.2 mm	7	IDC	1	Tin	0.059 "	1.5 mm	8 in
JST Sales America Inc. A07ZR07ZR28H254A	Socket to Socket Reversed	Gray Individual	0.833 ft	254 mm	7	IDC	1	Tin	0.059 "	1.5 mm	10 in
JST Sales America Inc. A07ZR07ZR28H254B	Socket to Socket	Gray Individual	0.833 ft	254 mm	7	IDC	1	Tin	0.059 "	1.5 mm	10 in
JST Sales America Inc. A07ZR07ZR28H102A	Socket to Socket Reversed	Gray Individual			7	IDC	1	Tin	0.059 "	1.5 mm			4 "	0.333 ft	101.6 mm
JST Sales America Inc. A07ZR07ZR28H203A	Socket to Socket Reversed	Gray Individual	0.667 ft	203.2 mm	7	IDC	1	Tin	0.059 "	1.5 mm	8 in
JST Sales America Inc. A07ZR07ZR28H305B	Socket to Socket	Gray Individual	1 ft	304.8 mm	7	IDC	1	Tin	0.059 "	1.5 mm
JST Sales America Inc. A07ZR07ZR28H51B	Socket to Socket	Gray Individual	0.167 '	50.8 mm	7	IDC	1	Tin	0.059 "	1.5 mm	2 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

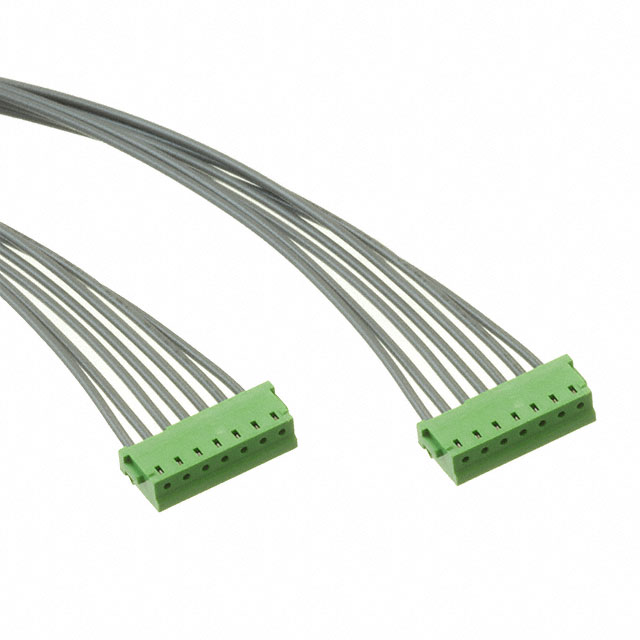

7 Position Cable Assembly Rectangular Socket to Socket 0.167' (50.80mm, 2.00")
