CONREVMCX012
ObsoleteTE Connectivity Linx
CONN RPMCX PLUG R/A 50OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
CONREVMCX012
ObsoleteTE Connectivity Linx
CONN RPMCX PLUG R/A 50OHM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CONREVMCX012 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | RG-174 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | RP-MCX |
| Connector Type | Plug, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |

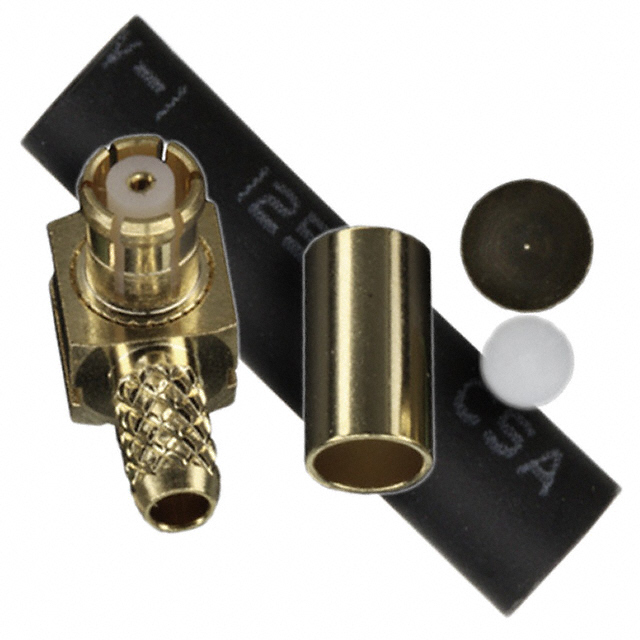

| Includes | 1 End Cap, 1 Connector, 1 Ferrule, 1 Insulator, 1 Heat Shrink |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
CONREVMCX Series
| Part | Shield Termination | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Impedance | Connector Style | Insertion Loss | Center Contact Plating | Center Contact Material | Frequency - Max [Max] | Contact Termination | Number of Ports | Housing Color | Mounting Feature | Mounting Type | Mating Cycles | Includes | Dielectric Material | Body Material | Fastening Type | Cable Group | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Linx | Solder | Male Pin Receptacle | -65 ░C | 165 °C | Gold | 50 Ohms | RP-MCX | 0.2 dB | Gold | Phosphor Bronze | 6000 MHz | Solder | 1 | Gold | Bulkhead - Front Side Nut | Panel Mount Right Angle Through Hole | 500 | 1 Connector 1 Lockwasher 1 Nut | Polytetrafluoroethylene (PTFE) | Brass | |||
TE Connectivity Linx | Crimp | Female Socket Plug | -65 ░C | 165 °C | Nickel | 50 Ohms | RP-MCX | 0.1 dB | Gold | Beryllium Copper | 6000 MHz | Solder | 1 | Silver | Free Hanging (In-Line) | 500 | Polytetrafluoroethylene (PTFE) | Brass | Push-Pull | RG-174 | |||
TE Connectivity Linx | Solder | Male Pin Receptacle | -65 ░C | 165 °C | Gold | 50 Ohms | RP-MCX | 0.1 dB | Gold | Phosphor Bronze | 6000 MHz | Solder | 1 | Gold | Board Edge End Launch | 500 | Polytetrafluoroethylene (PTFE) | Brass | Push-Pull | ||||
TE Connectivity Linx | Solder | Male Pin Receptacle | -65 ░C | 165 °C | Gold | 50 Ohms | RP-MCX | 0.1 dB | Gold | Brass | 6000 MHz | Solder | 1 | Gold | Through Hole | 500 | Polytetrafluoroethylene (PTFE) | Brass | Push-Pull | ||||
TE Connectivity Linx | Solder | Male Pin Receptacle | -65 ░C | 165 °C | Gold | 50 Ohms | RP-MCX | 0.1 dB | Gold | Beryllium Copper | 6000 MHz | Solder | 1 | Gold | Surface Mount Right Angle | 500 | Polytetrafluoroethylene (PTFE) | Brass | Push-Pull | ||||
TE Connectivity Linx | Crimp | Male Pin Receptacle | -65 ░C | 165 °C | Gold | 50 Ohms | RP-MCX | 0.1 dB | Gold | Phosphor Bronze | 6000 MHz | Solder | 1 | Gold | Bulkhead - Front Side Nut | 500 | 1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Lockwasher 1 Nut | Polytetrafluoroethylene (PTFE) | Brass | RG-174 | |||
TE Connectivity Linx | Crimp | Male Pin Receptacle | -65 ░C | 165 °C | Gold | 50 Ohms | RP-MCX | 0.1 dB | Gold | Phosphor Bronze | 6000 MHz | Solder | 1 | Gold | Free Hanging (In-Line) | 500 | Polytetrafluoroethylene (PTFE) | Brass | Push-Pull | RG-174 | |||
TE Connectivity Linx | Crimp | Female Socket Plug | -65 ░C | 165 °C | Gold | 50 Ohms | RP-MCX | 0.2 dB | Gold | Beryllium Copper | 6000 MHz | Solder | 1 | Gold | Free Hanging (In-Line) Right Angle | 500 | 1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink 1 Insulator | Polytetrafluoroethylene (PTFE) | Brass | Push-Pull | RG-174 | ||
TE Connectivity Linx | Crimp | Female Socket Plug | -65 ░C | 165 °C | Gold | 50 Ohms | RP-MCX | 0.1 dB | Gold | Beryllium Copper | 6000 MHz | Crimp Solder | 1 | Gold | Free Hanging (In-Line) | 500 | 1 Connector 1 Contact 1 Heat Shrink 1 Spacer 1 Support | Polytetrafluoroethylene (PTFE) | Brass | Push-Pull | RG-178 | 250 VDC | |
TE Connectivity Linx | Crimp | Female Socket Plug | -65 ░C | 165 °C | Gold | 50 Ohms | RP-MCX | 0.2 dB | Gold | Beryllium Copper | 6000 MHz | Solder | 1 | Gold | Free Hanging (In-Line) Right Angle | 500 | 1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink 1 Insulator | Polytetrafluoroethylene (PTFE) | Brass | Push-Pull | RG-178 | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CONREVMCX Series
RP-MCX Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
Documents
Technical documentation and resources
No documents available
