LHC-06-TS-V0

Active

Adam Tech

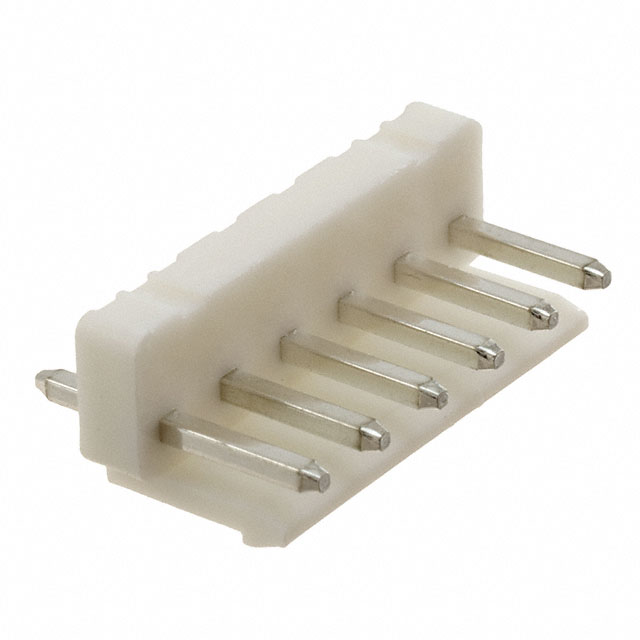

CONN HEADER VERT 6POS 3.96MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER VERT 6POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHC-06-TS-V0

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	7.7 mm
Contact Length - Mating	0.303 in
Contact Length - Post	0.146 in
Contact Length - Post	3.7 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	7 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height	3.2 mm
Insulation Height	0.126 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Termination	Number of Positions	Fastening Type	Contact Finish - Post	Number of Rows	Connector Type	Contact Material	Insulation Height	Insulation Height	Contact Type	Contact Shape	Shrouding	Insulation Color	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Style	Voltage Rating	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Mounting Type	Insulation Material
Adam Tech LHC-06-TS-V0	7 A	7.7 mm	0.303 in	Solder	6	Friction Lock	Tin	1	Header	Brass	3.2 mm	0.126 in	Male Pin	Square	Shrouded - 1 Wall	White	UL94 V-0	-25 °C	85 °C	0.156 in	3.96 mm	Board to Cable/Wire	250 VAC	All	0.146 in	3.7 mm	Through Hole	Polyamide (PA66) Nylon 6/6
