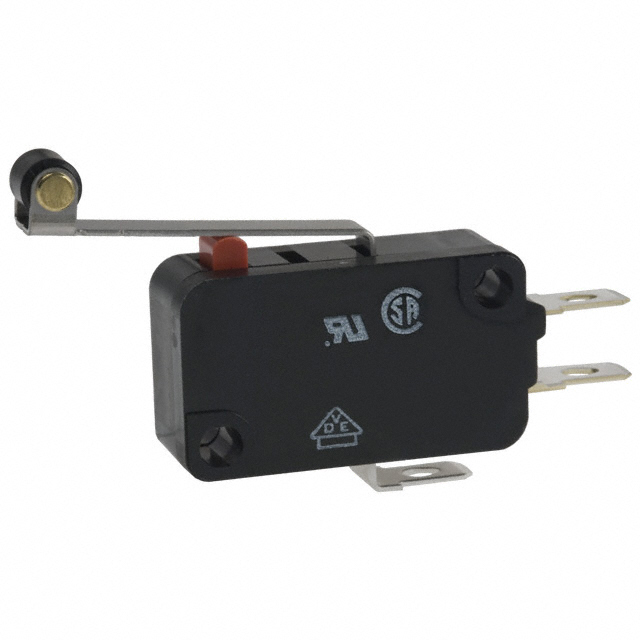

VX-56-1A3
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
VX-56-1A3
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 5A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VX-56-1A3 |
|---|---|
| Actuator Type | Roller, Lever |
| Circuit | SPDT |
| Current Rating (Amps) | 5 A |
| Differential Travel | 0.8 mm |
| Differential Travel | 0.031 " |
| Electrical Life | 500000 Cycles |
| Ingress Protection | IP40 |
| Mechanical Life | 50000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 30 gf |
| Operating Position | 20.7 mm |
| Operating Position | 0.815 in |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 1.6 mm |
| Overtravel | 0.062 in |
| Pretravel | 4 mm |
| Pretravel | 0.157 in |
| Switch Function | On-Mom |
| Termination Style | Solder, Quick Connect |
| Termination Style | 4.7 mm, 0.187 in |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.78 | |
| 10 | $ 4.62 | |||
| 25 | $ 4.39 | |||
| 40 | $ 4.27 | |||
| 100 | $ 3.70 | |||
| 300 | $ 3.47 | |||
| 500 | $ 3.29 | |||
| 1000 | $ 3.18 | |||
Description
General part information
VX-56 Series
Switch SPDT Chassis Mount
