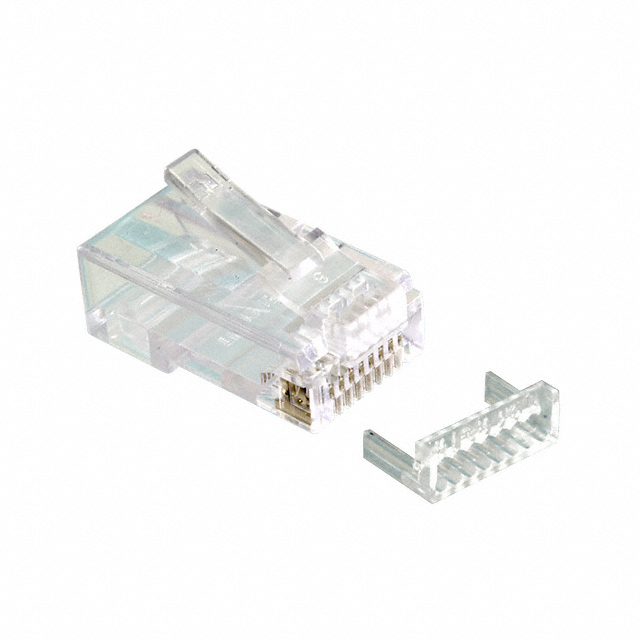

TM22P-88P

Active

Hirose Electric USA, Inc.

CONN MOD PLUG 8P8C UNSHIELDED

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN MOD PLUG 8P8C UNSHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	TM22P-88P

Cable Type	Round Cable, Solid, Stranded Wires
Color	Translucent - Clear
Connector Type	Plug
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	1 A
Features	Protective Latch Cover
Housing Material	Polycarbonate (PC)
Length	0.886 in
Length	22.5 mm
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat5e
Shield Material	Copper Alloy
Shielding	Unshielded
Termination	IDC
Voltage Rating	125 VDC
Wire Gauge	24 AWG

Part	Length	Length	Contact Material	Shielding	Features	Voltage Rating	Shield Material	Current Rating (Amps)	Color	Wire Gauge	Termination	Ratings	Number of Positions/Contacts	Housing Material	Connector Type	Cable Type	Contact Finish
Hirose Electric USA, Inc. TM22P-88P	0.886 in	22.5 mm	Copper Alloy	Unshielded	Protective Latch Cover	125 VDC	Copper Alloy	1 A	Translucent - Clear	24 AWG	IDC	Cat5e	8p8c (RJ45 Ethernet)	Polycarbonate (PC)	Plug	Round Cable Solid Stranded Wires	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Unshielded Cat5e IDC
