2834708

Obsolete

Phoenix Contact

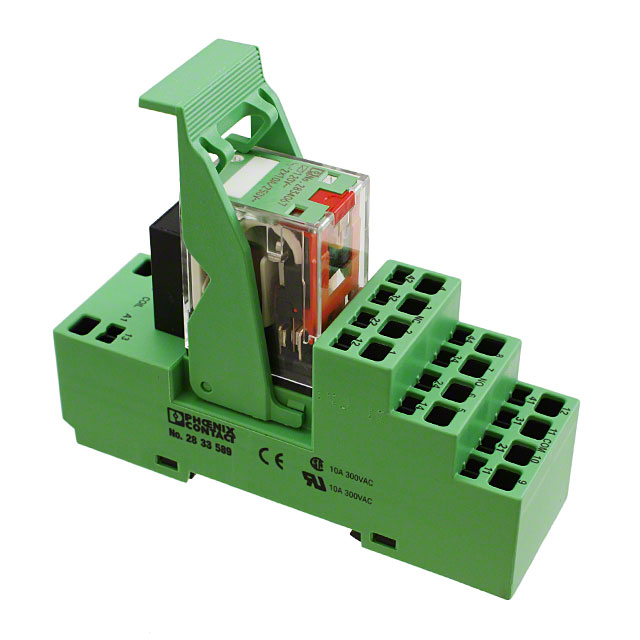

RELAY GEN PURPOSE DPDT 10A 120V

Search across all available documentation for this part.

Obsolete

Phoenix Contact

RELAY GEN PURPOSE DPDT 10A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	2834708

Coil Current	9 mA
Coil Resistance	13.33 kOhms
Coil Type	Non Latching
Coil Voltage	120 VAC
Contact Form	DPDT (2 Form C)
Contact Material	Silver (Ag)
Contact Rating (Current)	10 A
Features	Lighted Indicator, Varistor, Socket Included
Load - Max Switching	2500 VA, 1250 W
Mounting Type	DIN Rail
Operate Time	10 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	12 ms
Switching Voltage	250 VAC, 125 VDC
Termination Style	Spring Terminal

Part	Relay Type	Switching Voltage	Load - Max Switching	Operating Temperature [Min]	Operating Temperature [Max]	Coil Current	Release Time	Mounting Type	Operate Time	Coil Resistance	Contact Rating (Current)	Coil Voltage	Coil Type	Contact Material	Termination Style	Features	Contact Form
Phoenix Contact 2834766	General Purpose	125 VDC 250 VAC	625 W 1250 VA	-25 °C	60 °C	38 mA	5 ms	DIN Rail	13 ms	632 Ohms	5 A	24 VDC	Non Latching	Gold (Au) Silver Nickel (AgNi)	Spring Terminal	Diode Lighted Indicator Socket Included	4PDT (4 Form C)
Phoenix Contact 2834795	General Purpose	250 VAC 250 VDC		-25 °C	60 °C	4 mA	12 ms	DIN Rail	10 ms	57.5 kOhms	5 A	230 VAC	Non Latching	Gold (Au) Silver Nickel (AgNi)	Spring Terminal	Lighted Indicator Socket Included Varistor	4PDT (4 Form C)
Phoenix Contact 2834782	General Purpose	250 VAC 250 VDC		-25 °C	60 °C	9 mA	12 ms	DIN Rail	10 ms	13.33 kOhms	5 A	120 VAC	Non Latching	Gold (Au) Silver Nickel (AgNi)	Spring Terminal	Lighted Indicator Socket Included Varistor	4PDT (4 Form C)
Phoenix Contact 2834708	General Purpose	125 VDC 250 VAC	1250 W 2500 VA	-25 °C	60 °C	9 mA	12 ms	DIN Rail	10 ms	13.33 kOhms	10 A	120 VAC	Non Latching	Silver (Ag)	Spring Terminal	Lighted Indicator Socket Included Varistor	DPDT (2 Form C)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay DPDT (2 Form C) 120VAC Coil DIN Rail
