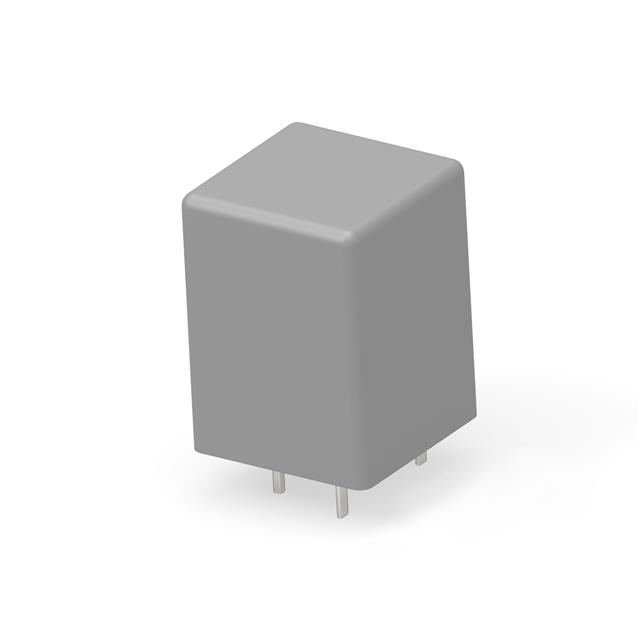

2-1415538-3

Active

TE Connectivity Potter & Brumfield Relays

RT115730

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RT115730

Technical Specifications

Parameters and characteristics for this part

Part	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Coil Current	Switching Voltage [Max]	Coil Type	Coil Insulation	Must Release Voltage	Release Time	Load - Max Switching	Operate Time	Contact Rating (Current)	Approval Agency	Contact Form	Seal Rating	Termination Style	Mounting Type	Coil Resistance	Coil Voltage	Contact Material
TE Connectivity Potter & Brumfield Relays 1415538-7	16.8 VDC	85 °C	-40 °C	General Purpose	16.7 mA	400 VAC	Non Latching	Class F	2.4 VDC	6 ms	6400 VA	8 ms	16 A	CQC CSA cURus VDE	SPDT (1 Form C)	Sealed - Flux Protection	PC Pin	Through Hole	1440 Ohms	24 VDC	Silver Nickel (AgNi)
TE Connectivity Potter & Brumfield Relays 2-1415538-3	175.5 VAC	70 °C	-40 °C	General Purpose	7.1 mA	400 VAC	Non Latching	Class F	34.5 VAC	6 ms	4800 VA	8 ms	12 A	CQC CSA cURus VDE	SPDT (1 Form C)	Sealed - Flux Protection	PC Pin	Through Hole	32500 Ohms	230 VAC	Gold (Au) Silver Nickel (AgNi)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	5000	$ 7.28

General part information

General Purpose Relay SPDT (1 Form C) 230VAC Coil Through Hole
