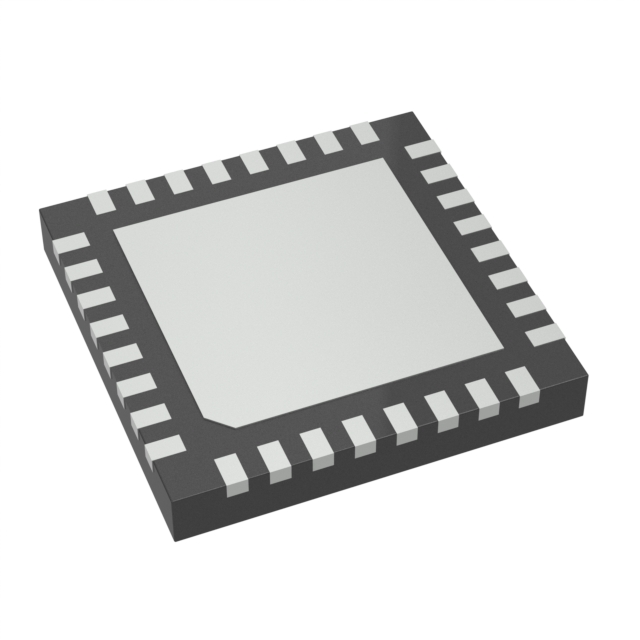

RTQ2115AGQWT-QA
ActiveRichtek USA Inc.
IC REG BUCK ADJ 3A 32WQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RTQ2115AGQWT-QA
ActiveRichtek USA Inc.
IC REG BUCK ADJ 3A 32WQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RTQ2115AGQWT-QA |
|---|---|
| Current - Output | 3 A |
| Frequency - Switching [Max] | 2.2 MHz |
| Frequency - Switching [Min] | 300 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Supplier Device Package | 32-WQFN (5x5) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 3 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.13 | |
| Digi-Reel® | 1 | $ 6.13 | ||
| Tape & Reel (TR) | 1500 | $ 3.19 | ||
Description
General part information
RTQ2115 Series
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 32-WFQFN Exposed Pad
