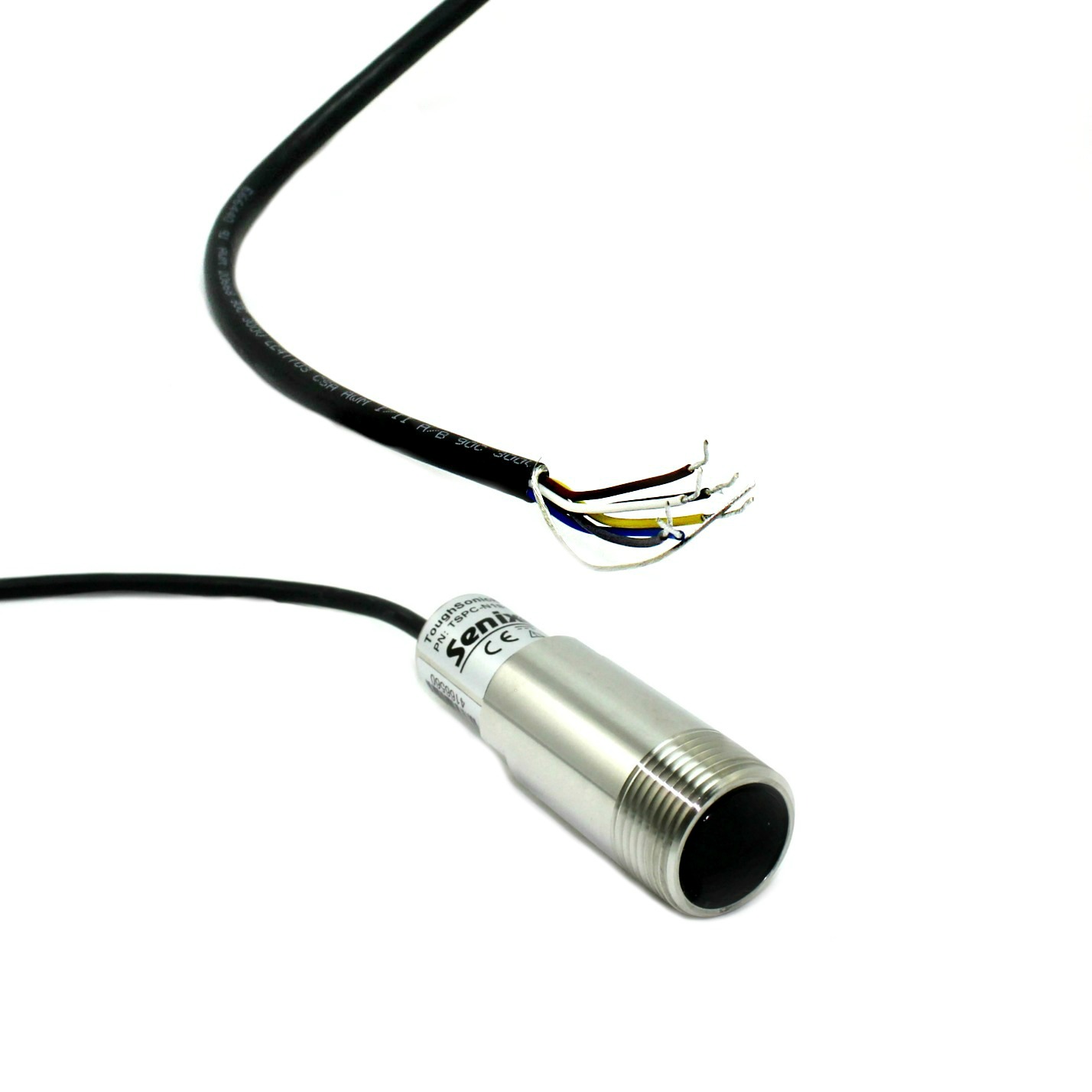

TSPC-N1S1K-485

Active

Senix Corporation

SENSOR PROX ULTRASON 3700MM CYL

Search across all available documentation for this part.

Active

Senix Corporation

SENSOR PROX ULTRASON 3700MM CYL

Technical Specifications

Parameters and characteristics for this part

Specification	TSPC-N1S1K-485

Indicator [custom]	No Indicator
Ingress Protection	IP68 NEMA 4X, IP68 NEMA 6P
Material - Body	Stainless Steel
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Type	NPN/PNP, Analog Current and Voltage
Package / Case	Cylinder, Threaded
Sensing Distance	3700 mm
Sensing Distance	145.669 "
Sensor Type	Ultrasonic
Shielding	Unshielded
Termination Style	Cable Leads
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Sensor Type	Termination Style	Sensing Distance	Sensing Distance	Package / Case	Material - Body	Shielding	Indicator [custom]	Ingress Protection	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]
Senix Corporation TSPC-N1S1-485	Ultrasonic	Cable Leads	4.3 m	169.291 in	Cylinder Threaded	Stainless Steel	Unshielded	No Indicator	IP68 NEMA 4X IP68 NEMA 6P	Analog Current and Voltage NPN/PNP	30 VDC	10 VDC	-40 °C	70 °C
Senix Corporation TSPC-N1S1K-232	Ultrasonic	Cable Leads	3700 mm	145.669 "	Cylinder Threaded	Stainless Steel	Unshielded	No Indicator	IP68 NEMA 4X IP68 NEMA 6P	Analog Current and Voltage NPN/PNP	30 VDC	10 VDC	-40 °C	70 °C
Senix Corporation TSPC-N1S2-485	Ultrasonic	Cable Leads	910 mm	35.827 in	Cylinder Threaded	Stainless Steel	Unshielded	No Indicator	IP68 NEMA 4X IP68 NEMA 6P	Analog Current and Voltage NPN/PNP	30 VDC	10 VDC	-40 °C	70 °C
Senix Corporation TSPC-N1S2-232	Ultrasonic	Cable Leads	910 mm	35.827 in	Cylinder Threaded	Stainless Steel	Unshielded	No Indicator	IP68 NEMA 4X IP68 NEMA 6P	Analog Current and Voltage NPN/PNP	30 VDC	10 VDC	-40 °C	70 °C
Senix Corporation TSPC-N1S1K-485	Ultrasonic	Cable Leads	3700 mm	145.669 "	Cylinder Threaded	Stainless Steel	Unshielded	No Indicator	IP68 NEMA 4X IP68 NEMA 6P	Analog Current and Voltage NPN/PNP	30 VDC	10 VDC	-40 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 594.61

General part information

SENSOR PROX ULTRASON 3700MM CYL

Technical documentation and resources

No documents available
