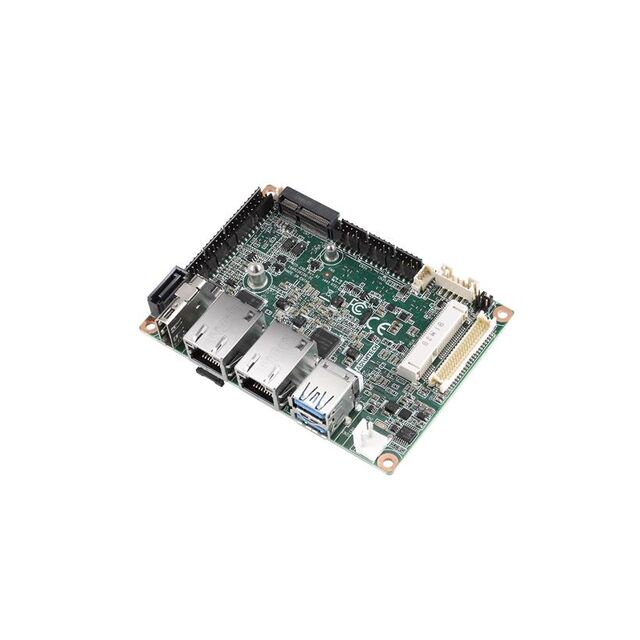

MIO-2361EW-S6A2

Active

Advantech Corp

SBC 1.8GHZ 4 CORE 4GB/32GB RAM

Search across all available documentation for this part.

Active

Advantech Corp

SBC 1.8GHZ 4 CORE 4GB/32GB RAM

Technical Specifications

Parameters and characteristics for this part

Part	USB	Operating Temperature [Max]	Operating Temperature [Min]	Core Processor	Expansion Site/Bus	Digital I/O Lines	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Video Outputs	Form Factor	Watchdog Timer	Speed	Storage Interface	Cooling Type	Number of Cores	RS-232 (422, 485)	Ethernet	Ethernet	RAM Capacity/Installed	USB
Advantech Corp MIO-2361EW-S1A1	2 2	85 °C	-40 °C	Intel Atom E3930	M.2 mSATA PCIe	16	2.8 in	71.12 mm	3.9 "	99.06 mm	DirectX11 DP eDP HDMI LVDS Multi-Display OpenCL OpenGL VGA	Pico-ITX SBC		1.8 GHz	eMMC M.2 mSATA SATA3	Fan	2	2	10 Mbps 100 Mbps 1000 Mbps	GbE (2) RJ45 (2)	0 GB 4 GB
Advantech Corp MIO-2361EW-S6A2		85 °C	-40 °C		M.2 mSATA PCIe		2.834 in	72 mm	3.937 in	100 mm	HDMI LCD LVDS VGA	Pico-ITX SBC		1.8 GHz	eMMC	Fan	4	2	10 Mbps 100 Mbps 1000 Mbps	GbE (2) RJ45 (2)	4 GB 32 GB	USB 2.0 (4) USB 3.0 (2)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Board Computer 1.8GHz 4 Core 4GB/32GB RAM Intel Atom E3940
