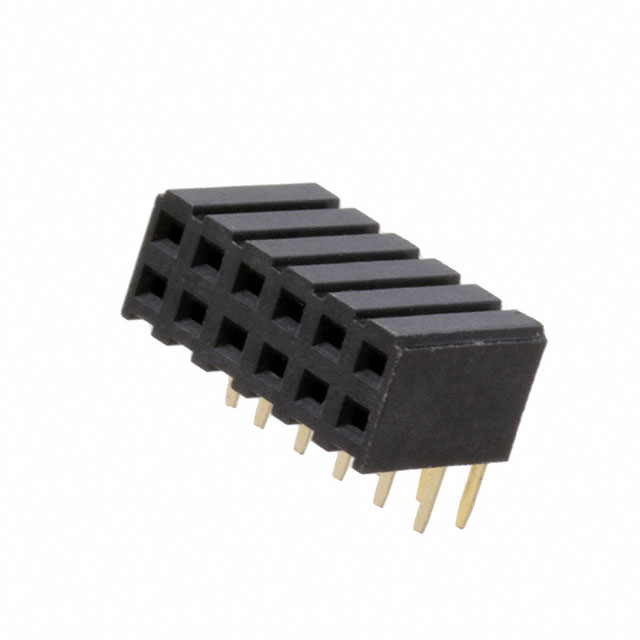

2RS2R-12-G

Active

Adam Tech

RECEPTACLE STRIP 12P 2.0MM PITCH

Search across all available documentation for this part.

Active

Adam Tech

RECEPTACLE STRIP 12P 2.0MM PITCH

Technical Specifications

Parameters and characteristics for this part

Specification	2RS2R-12-G

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.191 in
Insulation Height	4.85 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder
Voltage Rating	250 VAC

Part	Contact Material	Voltage Rating	Material Flammability Rating	Insulation Material	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Shape	Contact Length - Post	Contact Length - Post	Number of Positions	Fastening Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Finish Thickness - Mating	Mounting Type	Termination	Applications	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Contact Finish - Post	Number of Positions
Adam Tech 2RS2R-16-G	Phosphor Bronze	250 VAC	UL94 V-0	Thermoplastic	0.191 in	4.85 mm	0.079 in	2 mm	Gold	Flash	All	Square	0.118 in	3 mm	16	Push-Pull	Receptacle	-40 °C	105 ░C	2	Flash	Through Hole Right Angle	Solder	General Purpose	Female Socket	0.079 in	2 mm	Black	Gold
Adam Tech 2RS2R-12-G	Phosphor Bronze	250 VAC	UL94 V-0	Thermoplastic	0.191 in	4.85 mm	0.079 in	2 mm	Gold	Flash	All	Square	0.118 in	3 mm		Push-Pull	Receptacle	-40 °C	105 ░C	2	Flash	Through Hole Right Angle	Solder	General Purpose	Female Socket	0.079 in	2 mm	Black	Gold	12
Adam Tech 2RS2R-06-G	Phosphor Bronze	250 VAC	UL94 V-0	Thermoplastic	0.191 in	4.85 mm	0.079 in	2 mm	Gold	Flash	All	Square	0.118 in	3 mm		Push-Pull	Receptacle	-40 °C	105 ░C	2	Flash	Through Hole Right Angle	Solder	General Purpose	Female Socket	0.079 in	2 mm	Black	Gold	6
