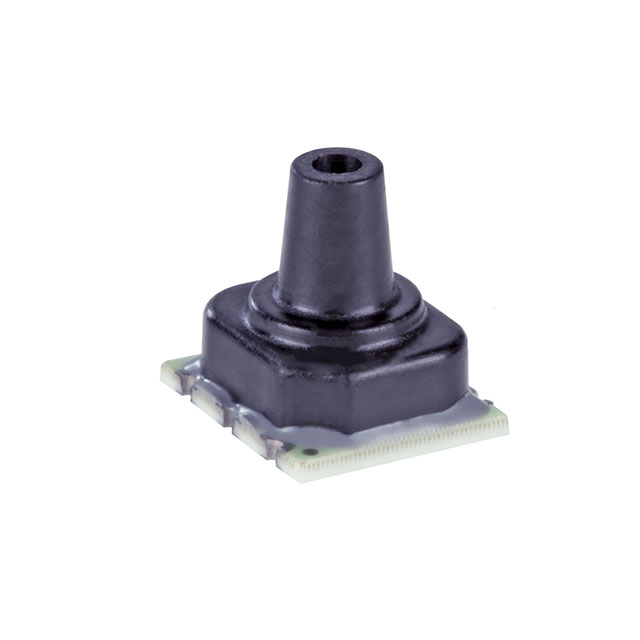

ABPLLNN600MGAA3

Active

Honeywell Sensing and Productivity Solutions

SENSOR 8.7PSIG 0.11" 2.97V MOD

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 8.7PSIG 0.11" 2.97V MOD

Technical Specifications

Parameters and characteristics for this part

Specification	ABPLLNN600MGAA3

Accuracy	0.25 %
Applications	Medical Ventilation
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	200 kPa
Maximum Pressure [Max]	29.01 PSI
Mounting Type	Surface Mount
Operating Pressure	60 kPa
Operating Pressure	8.7 PSI
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output [Max]	2.97 V
Output [Min]	0.33 V
Output Type	Analog Voltage
Port Size	0.11 ", 2.67 mm
Port Style	Barbless
Pressure Type	Vented Gauge
Supplier Device Package	Module
Termination Style	SMD (SMT) Tab
Voltage - Supply	3.3 V

Part	Port Style	Output Type	Termination Style	Pressure Type	Output [Min]	Output [Max]	Supplier Device Package	Mounting Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Accuracy	Operating Pressure	Operating Pressure	Voltage - Supply	Port Size	Applications
Honeywell Sensing and Productivity Solutions ABPLLNN600MGAA3	Barbless	Analog Voltage	SMD (SMT) Tab	Vented Gauge	0.33 V	2.97 V	Module	Surface Mount	200 kPa	29.01 PSI	85 °C	-40 °C	Amplified Output Temperature Compensated	0.25 %	60 kPa	8.7 PSI	3.3 V	0.11 " 2.67 mm	Medical Ventilation

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 8.7PSI (60kPa) Vented Gauge Male - 0.11" (2.67mm) Tube 0.33 V ~ 2.97 V 6-SMD Module, No Lead
