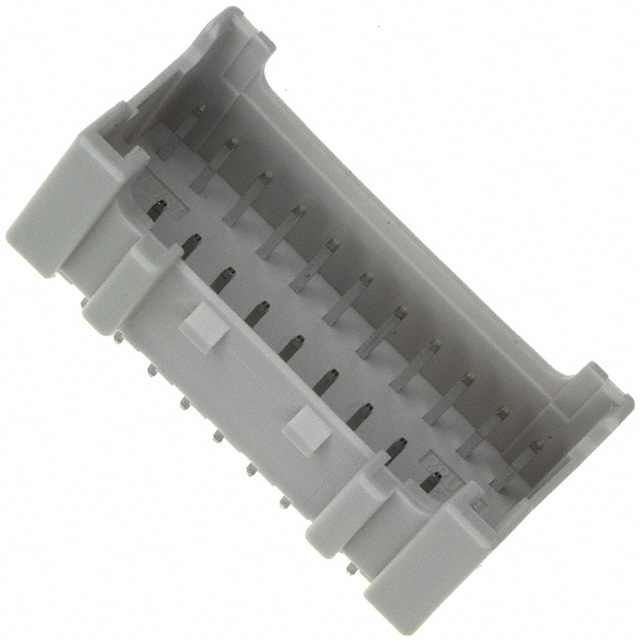

B22B-PNDZS-1

Active

JST Sales America Inc.

CONN HEADER VERT 22POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 22POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B22B-PNDZS-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Ivory
Insulation Height [z]	9.91 mm
Insulation Height [z]	0.39 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	12.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	22 positions
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	5 mm
Row Spacing - Mating	0.197 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Voltage Rating	Style	Mounting Type	Insulation Height [z]	Insulation Height [z]	Insulation Color	Number of Positions	Shrouding	Current Rating (Amps)	Contact Finish - Post	Features	Contact Length - Post	Contact Length - Post [x]	Connector Type	Termination	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Number of Rows	Contact Shape	Contact Material	Fastening Type	Material Flammability Rating	Contact Type	Insulation Material	Mated Stacking Heights	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating [x]	Pitch - Mating [x]
JST Sales America Inc. B22B-PNDZS-1	250 VDC	Board to Cable/Wire	Through Hole	9.91 mm	0.39 in	Ivory	22 positions	Shrouded - 4 Wall	3 A	Tin	Board Guide	3.2 mm	0.126 in	Header	Solder	5 mm	0.197 in	All	2	Square	Copper Alloy	Locking Ramp	UL94 V-0	Male Pin	Polyamide (PA66) Nylon 6/6 Glass Filled	12.9 mm	-25 °C	85 °C	0.079 in	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 22 position 0.079" (2.00mm)
