A41,AL

Active

Serpac

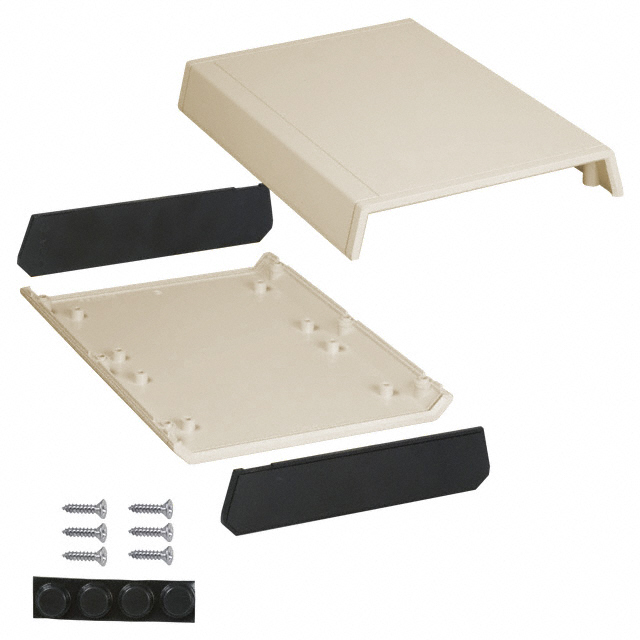

BOX ABS ALMOND 7.12"L X 5"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 7.12"L X 5"W

Technical Specifications

Parameters and characteristics for this part

Specification	A41,AL

Area (L x W) [custom]	230 cm˛
Area (L x W) [custom]	35.6 in˛
Color	Almond
Container Type	Box
Design	Split Sides and End Panel(s)
Features	PCB Supports
Height [z]	33.27 mm
Height [z]	1.31 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	7.12 "
Size / Dimension [x]	180.85 mm
Size / Dimension [y]	5 "
Size / Dimension [y]	127 mm
Thickness	0.12 in
Thickness	3.05 mm
Weight	205.02 g
Weight	0.452 lb

Part	Design	Features	Area (L x W) [custom]	Area (L x W) [custom]	Height [z]	Height [z]	Ratings	Thickness	Thickness	Color	Material Flammability Rating	Container Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Material	Area (L x W) [custom]	Area (L x W) [custom]
Serpac A41,BK	Split Sides and End Panel(s)	PCB Supports	230 cm²	35.6 in²	33.27 mm	1.31 in	IP40	0.12 in	3.05 mm	Black	UL94 HB	Box	7.12 "	5 "	127 mm	180.85 mm	205.02 g	0.452 lb	Plastic ABS
Serpac A41,GY	Split Sides and End Panel(s)	PCB Supports	230 cm²	35.6 in²	33.27 mm	1.31 in	IP40	0.12 in	3.05 mm	Gray	UL94 HB	Box	7.12 "	5 "	127 mm	180.85 mm	205.02 g	0.452 lb	Plastic ABS
Serpac A41,AL	Split Sides and End Panel(s)	PCB Supports			33.27 mm	1.31 in	IP40	0.12 in	3.05 mm	Almond	UL94 HB	Box	7.12 "	5 "	127 mm	180.85 mm	205.02 g	0.452 lb	Plastic ABS	230 cm˛	35.6 in˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Almond Split Sides and End Panel(s) 7.120" L x 5.000" W (180.85mm x 127.00mm) X 1.310" (33.27mm)
