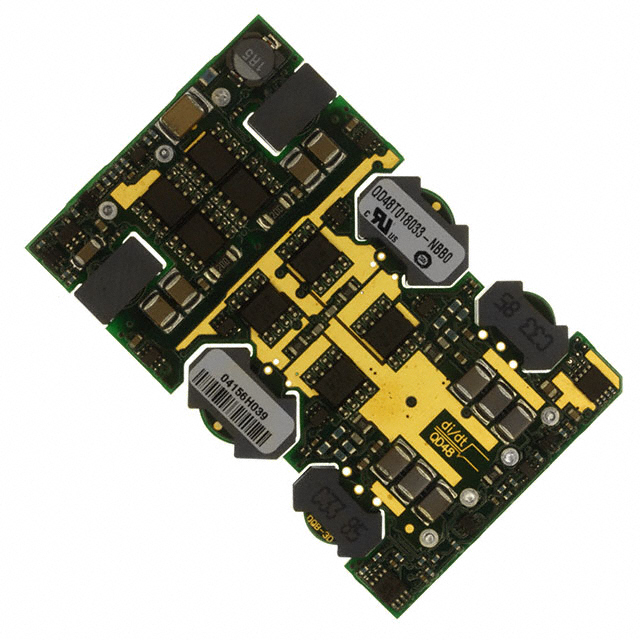

QD48T018033-NBB0

Active

EOS Power India Private Ltd

DC DC CONVERTER 1.8V 3.3V 49W

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

DC DC CONVERTER 1.8V 3.3V 49W

Technical Specifications

Parameters and characteristics for this part

Part	Features	Voltage - Input (Max) [Max]	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Voltage - Output 1	Number of Outputs	Type	Voltage - Isolation	Package / Case	Mounting Type	Power (Watts)	Applications
EOS Power India Private Ltd QD48T018033-PAA0G	OCP OTP OVP Remote On/Off SCP UVLO	75 V	Active High Enable	85 °C	-40 °C	87 %	7.7 mm	36.8 mm	2.3 in	58.4 mm	1.45 in	0.3 "	36 V	15 A	15 A	3.3 V	1.8 V	2	Isolated Module	2000 V	7-DIP Module 1/4 Brick	Through Hole	77 W	ITE (Commercial)
EOS Power India Private Ltd QD48T018033-NDB0G	OCP OTP OVP Remote On/Off SCP UVLO	75 V	Active Low Enable	85 °C	-40 °C	87 %	10.2 mm	36.8 mm	2.3 in	58.4 mm	1.45 in	0.4 "	36 V	15 A	15 A	3.3 V	1.8 V	2	Isolated Module	2000 V	7-DIP Module 1/4 Brick	Through Hole	77 W	ITE (Commercial)
EOS Power India Private Ltd QD48T018033-NBB0		75 V		85 °C	-40 °C	87.5 %	8.6 mm	36.8 mm	2.3 in	58.4 mm	1.45 in	0.34 in	36 V	15 A	15 A	3.3 V	1.8 V	2	Isolated Module	2000 V	7-DIP Module 1/4 Brick	Through Hole	49 W	ITE (Commercial)
EOS Power India Private Ltd QD48T018033-NBB0G	OCP OTP OVP Remote On/Off SCP UVLO	75 V	Active Low Enable	85 °C	-40 °C	87 %	8.5 mm	36.8 mm	2.3 in	58.4 mm	1.45 in	0.34 in	36 V	15 A	15 A	3.3 V	1.8 V	2	Isolated Module	2000 V	7-DIP Module 1/4 Brick	Through Hole	77 W	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 1.8V 3.3V 15A, 15A 36V - 75V Input

Technical documentation and resources

No documents available
