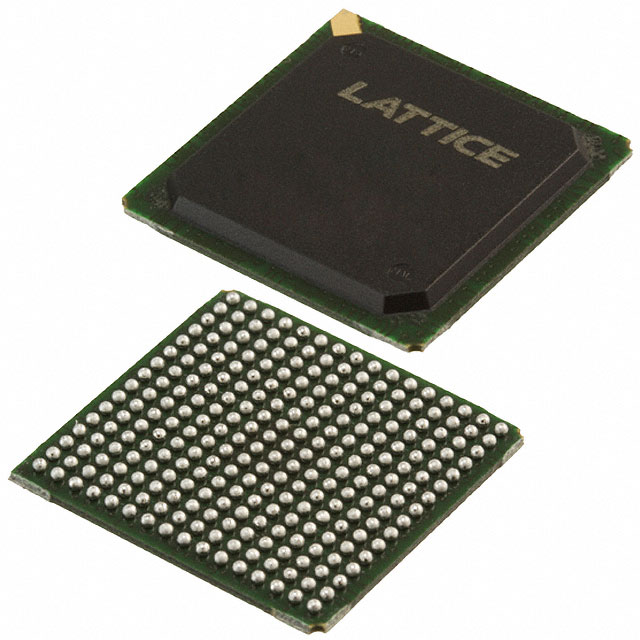

LC5256MV-5FN256C

Obsolete

LATTICE SEMICONDUCTOR

EE PLD, 6NS, 256-CELL, CMOS, PBGA256, LEAD FREE, FPBGA-256

Search across all available documentation for this part.

Obsolete

LATTICE SEMICONDUCTOR

EE PLD, 6NS, 256-CELL, CMOS, PBGA256, LEAD FREE, FPBGA-256

Technical Specifications

Parameters and characteristics for this part

Specification	LC5256MV-5FN256C

Delay Time tpd(1) Max [Max]	5 ns
Mounting Type	Surface Mount
Number of I/O	141
Number of Logic Elements/Blocks	8
Number of Macrocells	256
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	0 °C
Package / Case	256-BGA
Programmable Type	In System Programmable
Supplier Device Package	256-FPBGA (17x17)
Voltage Supply - Internal [Max]	3.6 V
Voltage Supply - Internal [Min]	3 V

Part	Number of Logic Elements/Blocks	Operating Temperature [custom]	Delay Time tpd(1) Max [Max]	Mounting Type	Package / Case	Number of Macrocells	Programmable Type	Supplier Device Package	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Number of I/O	Operating Temperature [Min]	Operating Temperature [Max]
LATTICE SEMICONDUCTOR LC5256MB-5F256I	8	-40 °C 105 °C	5 ns	Surface Mount	256-BGA	256	In System Programmable	256-FPBGA (17x17)	2.3 V	2.7 V	141
LATTICE SEMICONDUCTOR LC5256MB-5FN256C	8		5 ns	Surface Mount	256-BGA	256	In System Programmable	256-FPBGA (17x17)	2.3 V	2.7 V	141	0 °C	90 °C
LATTICE SEMICONDUCTOR LC5256MV-75FN256C	8		7.5 ns	Surface Mount	256-BGA	256	In System Programmable	256-FPBGA (17x17)	3 V	3.6 V	141	0 °C	90 °C
LATTICE SEMICONDUCTOR LC5256MV-5F256I	8	-40 °C 105 °C	5 ns	Surface Mount	256-BGA	256	In System Programmable	256-FPBGA (17x17)	3 V	3.6 V	141
LATTICE SEMICONDUCTOR LC5256MB-75FN256C	8		7.5 ns	Surface Mount	256-BGA	256	In System Programmable	256-FPBGA (17x17)	2.3 V	2.7 V	141	0 °C	90 °C
LATTICE SEMICONDUCTOR LC5256MV-5FN256C	8		5 ns	Surface Mount	256-BGA	256	In System Programmable	256-FPBGA (17x17)	3 V	3.6 V	141	0 °C	90 °C
LATTICE SEMICONDUCTOR LC5256MV-75F256I	8	-40 °C 105 °C	7.5 ns	Surface Mount	256-BGA	256	In System Programmable	256-FPBGA (17x17)	3 V	3.6 V	141

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

EE PLD, 6NS, 256-CELL, CMOS, PBGA256, LEAD FREE, FPBGA-256
