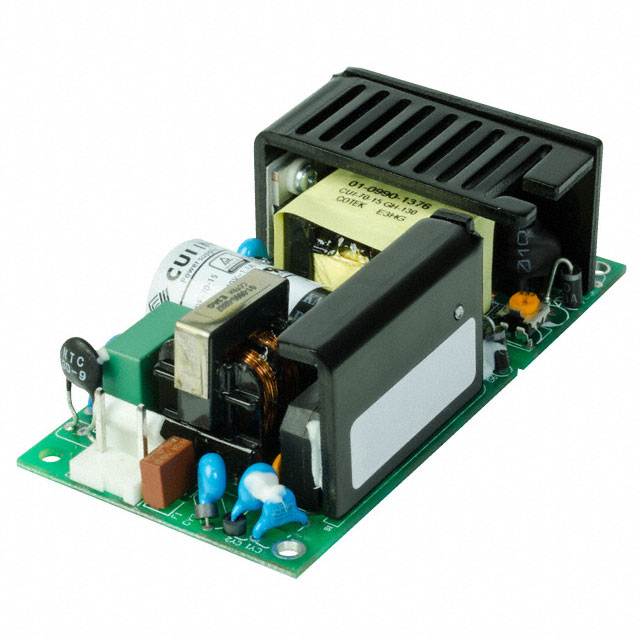

VOF-70-12

Obsolete

CUI Inc.

AC/DC CONVERTER 12V 70W

Deep-Dive with AI

Search across all available documentation for this part.

VOF-70-12

Obsolete

CUI Inc.

AC/DC CONVERTER 12V 70W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VOF-70-12

Applications	ITE (Commercial)
Approval Agency	SIQ, CB Scheme, EN, UL, TUV, IEC, FCC
Efficiency	87 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	70 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	1.32 in
Size / Dimension [z]	33.6 mm
Standard Number	60950-1, 61204-3, 61000-3-3, 61000-3-2, 55024, 61000-6-1
Type	Open Frame
Voltage - Input [Max]	277 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

VOF-70 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Type	Standard Number	Efficiency	Power (Watts)	Applications	Voltage - Output 1	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Isolation	Features	Mounting Type	Current - Output 1
CUI Inc. VOF-70B-24	-20 °C	70 °C	CB Scheme CE EN FCC IEC SIQ TUV UL	Open Frame	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	89 %	70 W	ITE (Commercial)	24 V	1	1.24 "	50.8 mm	4 in	31.6 mm	101.6 mm	2 in	90 VAC	264 VAC	3000 V	Universal Input	Chassis Mount	2.92 A
CUI Inc. VOF-70B-12	-20 °C	70 °C	CB Scheme CE EN FCC IEC SIQ TUV UL	Open Frame	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	87 %	70 W	ITE (Commercial)	12 V	1	1.24 "	50.8 mm	4 in	31.6 mm	101.6 mm	2 in	90 VAC	264 VAC	3000 V	Universal Input	Chassis Mount	5.84 A
CUI Inc. VOF-70-5	-20 °C	60 °C	CB Scheme EN FCC IEC SIQ TUV UL	Open Frame	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61204-3	81 %	43 W	ITE (Commercial)	5 V	1	1.32 in	50.8 mm	4 in	33.6 mm	101.6 mm	2 in	90 VAC	277 VAC	3000 V	Adjustable Output Universal Input	Chassis Mount	8.61 A
CUI Inc. VOF-70-24	-20 °C	60 °C	CB Scheme EN FCC IEC SIQ TUV UL	Open Frame	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61204-3	88 %	70 W	ITE (Commercial)	24 V	1	1.32 in	50.8 mm	4 in	33.6 mm	101.6 mm	2 in	90 VAC	277 VAC	3000 V	Adjustable Output Universal Input	Chassis Mount	3 A
CUI Inc. VOF-70-12	-20 °C	60 °C	CB Scheme EN FCC IEC SIQ TUV UL	Open Frame	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61204-3	87 %	70 W	ITE (Commercial)	12 V	1	1.32 in	50.8 mm	4 in	33.6 mm	101.6 mm	2 in	90 VAC	277 VAC	3000 V	Adjustable Output Universal Input	Chassis Mount
CUI Inc. VOF-70-48	-20 °C	60 °C	CB Scheme EN FCC IEC SIQ TUV UL	Open Frame	55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61204-3	90 %	70 W	ITE (Commercial)	48 V	1	1.32 in	50.8 mm	4 in	33.6 mm	101.6 mm	2 in	90 VAC	277 VAC	3000 V	Adjustable Output Universal Input	Chassis Mount	1.5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

VOF-70 Series

Open Frame AC DC Converters 1 Output 12V 90 ~ 277 VAC Input

Documents

Technical documentation and resources

No documents available
