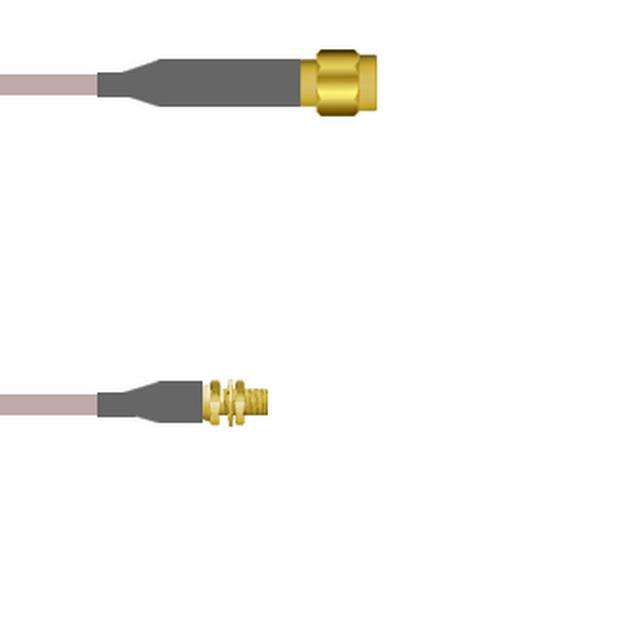

Q-6801100051.5M

Active

Amphenol Custom Cable

COAX CBL RP-SMA TO MCX 4.9'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL RP-SMA TO MCX 4.9'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-6801100051.5M

1st Connector	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	MCX Socket
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	RP-SMA to MCX

Part	2nd Contact Gender	1st Contact Gender	Frequency - Max [Max]	Cable Impedance	Cable Type	Features	1st Connector	2nd Connector	Overall Impedance	1st Connector Mounting Type	Color	Length [x]	Length [x]	2nd Connector Mounting Feature	Connector Impedance	Style	2nd Connector Mounting Type	Length	Length	Length
Amphenol Custom Cable Q-680110005.25M	Female	Female	3 GHz	50 Ohms	RG-316	Shielded	RP-SMA Plug	MCX Socket	50 Ohms	Free Hanging (In-Line)	Copper	9.843 "	250 mm	Bulkhead - Front Side Nut	50 Ohms	RP-SMA to MCX	Panel Mount
Amphenol Custom Cable Q-6801100051.5M	Female	Female	3 GHz	50 Ohms	RG-316	Shielded	RP-SMA Plug	MCX Socket	50 Ohms	Free Hanging (In-Line)	Copper			Bulkhead - Front Side Nut	50 Ohms	RP-SMA to MCX	Panel Mount	59.1 in	4.9 ft	1.5 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial RP-SMA to MCX RG-316 59.1" (1.5m) 4.9'

Technical documentation and resources

No documents available
