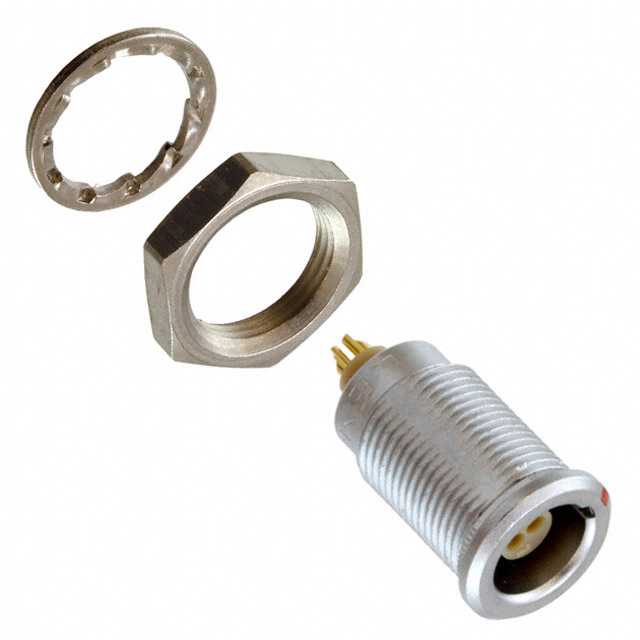

EGG.00.302.CLL

Active

LEMO

CONN RCPT FMALE 2P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 2P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	EGG.00.302.CLL

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	3.5 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	2
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	302
Shielding	Shielded

Part	Primary Material	Orientation	Shell Material	Shell Finish	Shell Size - Insert	Termination	Fastening Type	Shielding	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish - Mating	Current Rating (Amps)	Ingress Protection	Insert Material	Connector Type	Color	Material Flammability Rating	Contact Material
LEMO EGG.00.302.CYM	Metal	G	Brass	Chrome	302	Crimp	Push-Pull	Shielded	Bulkhead - Rear Side Nut	59 Áin	1.5 Ám	-55 °C	250 °C	2	Gold	5 A	IP50	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Silver	UL94 V-0	Bronze
LEMO EGG.00.302.CLL	Metal	G	Brass	Chrome	302		Push-Pull	Shielded	Bulkhead - Rear Side Nut	59 Áin	1.5 Ám	-55 °C	250 °C	2	Gold	3.5 A	IP50	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Silver	UL94 V-0	Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
