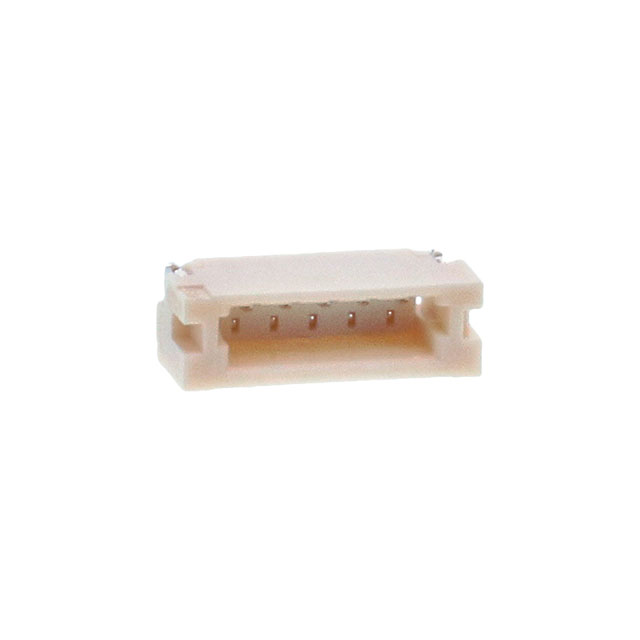

BM05B-SURS-TF

Active

JST Sales America Inc.

CONN HEADER SMD 5POS 0.8MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 5POS 0.8MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM05B-SURS-TF

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Current Rating (Amps)	0.2 A, 0.5 A
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Natural
Insulation Height [z]	2.7 mm
Insulation Height [z]	0.106 in
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	3.95 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.031 in
Pitch - Mating	0.8 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	30 VDC

Part	Material Flammability Rating	Features	Fastening Type	Contact Material	Voltage Rating	Contact Type	Contact Shape	Current Rating (Amps)	Style	Shrouding	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Mated Stacking Heights	Contact Finish - Post	Insulation Color	Number of Rows	Mounting Type	Termination	Connector Type
JST Sales America Inc. BM05B-SURS-TF	UL94 V-0	Solder Retention	Push-Pull	Copper Alloy	30 VDC	Outer Shroud Contact	Rectangular	0.2 A 0.5 A	Board to Cable/Wire	Shrouded - 4 Wall	Nylon Polyamide (PA)	-25 °C	85 °C	2.7 mm	0.106 in	0.031 in	0.8 mm	All	3.95 mm	Tin	Natural	1	Surface Mount	Solder	Header
