WR97A2000MICB-MFR6B

Active

GlobTek, Inc.

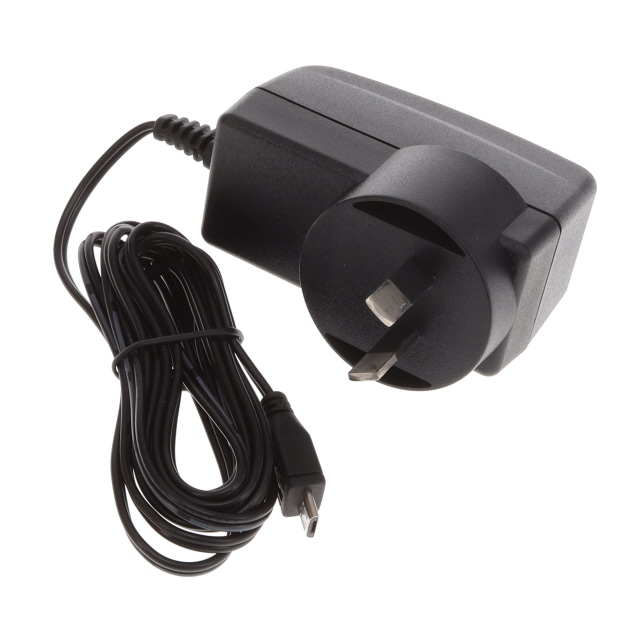

AC/DC WALL MOUNT ADAPTER 5V 10W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 5V 10W

Technical Specifications

Parameters and characteristics for this part

Specification	WR97A2000MICB-MFR6B

Applications	ITE (Commercial), Hazardous Locations
Approval Agency	RCM, EAC, CE, VCCI, CB
Cord Length	60.2 in
Cord Length	1.53 m
Current - Output (Max) [Max]	2 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	AS 3112
Input Type	Fixed Blade
Output Connector	USB Micro
Power (Watts)	10 W
Region Utilized	Australia
Size / Dimension [x]	69 mm
Size / Dimension [x]	2.72 "
Size / Dimension [y]	31.8 mm
Size / Dimension [y]	1.25 in
Size / Dimension [z]	49.5 mm
Size / Dimension [z]	1.95 in
Standard Number	60335-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

Part	Efficiency	Input Type	Output Connector	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Form	Approval Agency	Input Connector	Voltage - Input [Min]	Voltage - Input [Max]	Region Utilized	Applications	Cord Length	Cord Length	Current - Output (Max) [Max]	Voltage - Output	Standard Number
GlobTek, Inc. WR97A2000MICB-MFR6B	Level VI	Fixed Blade	USB Micro	10 W	49.5 mm	1.95 in	31.8 mm	69 mm	2.72 "	1.25 in	Wall Mount (Class II)	CB CE EAC RCM VCCI	AS 3112	90 VAC	264 VAC	Australia	Hazardous Locations ITE (Commercial)	60.2 in	1.53 m	2 A	5 V	60335-1 62368-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 10 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
