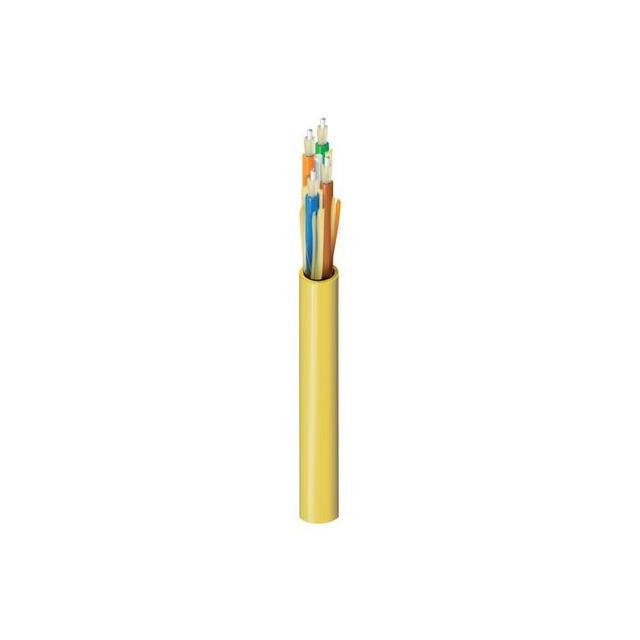

FISB004PB

Active

Belden Inc.

CBL FIBER OPTIC 125UM SINGLEMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM SINGLEMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FISB004PB

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	9 µm
Features	Rip Cord
Features	4 Cable Entries
Jacket (Insulation) Diameter [diameter]	0.263 in
Jacket (Insulation) Diameter [diameter]	6.68 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Yellow
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Ratings	OFNP
Style	Multiple Fibers
Tensile Strength	40.8 kg
Type	Singlemode

Part	Type	Core Diameter [diameter]	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Jacket (Insulation) Material	Features	Features	Cladding Diameter [diameter]	Style	Tensile Strength	Operating Temperature [Max]	Operating Temperature [Min]
Belden Inc. FISB004PB	Singlemode	9 µm	OFNP	0.263 in	6.68 mm	Yellow	Poly-Vinyl Chloride (PVC)	Rip Cord	4 Cable Entries	125 µm	Multiple Fibers	40.8 kg	70 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1640	$ 0.64

General part information

Fiber Optic Cable Yellow Singlemode 125µm
