APDA3020ZGCK

Active

Kingbright

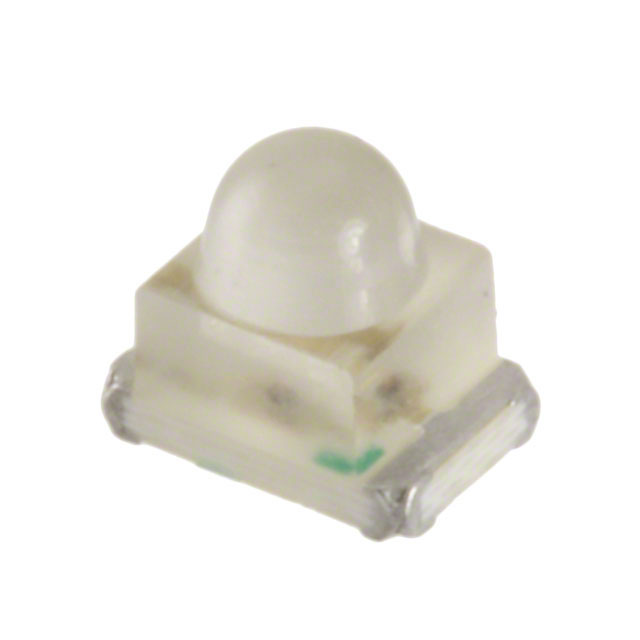

SINGLE COLOR LED, GREEN, WATER CLEAR, T-3/4, 1.9MM, ROHS COMPLIANT, SMD, 2 PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APDA3020ZGCK

Active

Kingbright

SINGLE COLOR LED, GREEN, WATER CLEAR, T-3/4, 1.9MM, ROHS COMPLIANT, SMD, 2 PIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APDA3020ZGCK

Color	Green
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	2 mm
Lens Color	Colorless
Lens Size [diameter]	1.9 mm
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating	1400 mcd
Mounting Type	Surface Mount, Right Angle
Package / Case	2-SMD, No Lead
Size / Dimension [x]	3 mm
Size / Dimension [y]	2.8 mm
Supplier Device Package	SMD
Viewing Angle	10 °
Voltage - Forward (Vf) (Typ)	3.3 V
Wavelength - Dominant	525 nm
Wavelength - Peak	515 nm

APDA3020 Series

Part	Lens Size [diameter]	Height (Max) [Max] [z]	Mounting Type	Wavelength - Peak	Lens Color	Configuration	Wavelength - Dominant	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Lens Transparency	Current - Test	Lens Style	Millicandela Rating	Viewing Angle	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Color	Type	Wavelength	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Radiant Intensity (Ie) Min @ If	Wavelength - Peak [custom]
Kingbright APDA3020LSECK/J4-PF	1.9 mm	2 mm	Surface Mount Right Angle	611 nm	Colorless	Standard	605 nm	2-SMD	1.8 V	Clear	2 mA	Round with Domed Top	1000 mcd	10 °	2-SMD No Lead	3 mm	2.8 mm
Kingbright APDA3020LVBC/D	1.9 mm	2 mm	Surface Mount Right Angle	465 nm	Colorless	Standard	470 nm	2-SMD	2.65 V	Clear	2 mA	Round with Domed Top	150 mcd	10 °	2-SMD No Lead	3 mm	2.8 mm	Blue
Kingbright APDA3020SYCK/J3-PF	1.9 mm	2 mm	Surface Mount Right Angle	590 nm	Colorless	Standard	590 nm	SMD	2 V	Clear	20 mA	Round with Domed Top		10 °	2-SMD No Lead	3 mm	2.8 mm	Yellow
Kingbright APDA3020VBC/D	1.9 mm	2 mm	Surface Mount Right Angle	465 nm	Colorless	Standard	470 nm	SMD	3.3 V	Clear	20 mA	Round with Domed Top	800 mcd	10 °	2-SMD No Lead	3 mm	2.8 mm	Blue
Kingbright APDA3020F3C-P22			Surface Mount Right Angle											10 °	2-SMD No Lead				Infrared (IR)	940 nm	50 mA	85 °C	-40 °C	Side View	5 mW/sr
Kingbright APDA3020LSYCK/J3-PF	1.9 mm	2 mm	Surface Mount Right Angle	590 nm	Colorless	Standard	590 nm	2-SMD	1.85 V	Clear	2 mA	Round with Domed Top	500 mcd	10 °	2-SMD No Lead	3 mm	2.8 mm	Yellow
Kingbright APDA3020SECK/J3-PF	1.9 mm	2 mm	Surface Mount Right Angle		Colorless	Standard	625 nm	SMD	2.2 V	Clear	20 mA	Round with Domed Top	3800 mcd	10 °	2-SMD No Lead	3 mm	2.8 mm	Red								640 nm
Kingbright APDA3020LSECK/J3-PF	1.9 mm	2 mm	Surface Mount Right Angle		Colorless	Standard	625 nm	2-SMD	1.8 V	Clear	2 mA	Round with Domed Top	500 mcd	10 °	2-SMD No Lead	3 mm	2.8 mm	Red								640 nm
Kingbright APDA3020LZGCK	1.9 mm	2 mm	Surface Mount Right Angle	515 nm	Colorless	Standard	525 nm	2-SMD	2.65 V	Clear	2 mA	Round with Domed Top	600 mcd	10 °	2-SMD No Lead	3 mm	2.8 mm	Green
Kingbright APDA3020ZGCK	1.9 mm	2 mm	Surface Mount Right Angle	515 nm	Colorless	Standard	525 nm	SMD	3.3 V	Clear	20 mA	Round with Domed Top	1400 mcd	10 °	2-SMD No Lead	3 mm	2.8 mm	Green
