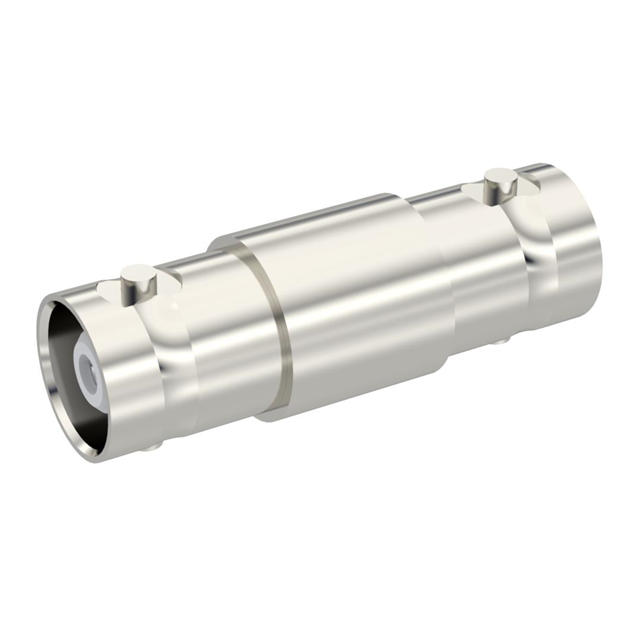

BNC HT-MHV / FEMALE-FEMALE ADAPT

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC HT-MHV / FEMALE-FEMALE ADAPT

Technical Specifications

Parameters and characteristics for this part

Specification	R316704000

Adapter Series	BNC to BNC
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Silver
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE), Polyethylene (PE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Body Finish	Convert To (Adapter End)	Center Contact Material	Convert From (Adapter End)	Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Adapter Series	Adapter Type	Frequency - Max [Max]	Impedance	Center Gender	Mating Cycles	Conversion Type	Dielectric Material	Center Contact Plating	Fastening Type
Radiall USA, Inc. R316704000	Nickel	BNC Jack Female Socket	Beryllium Copper Brass	BNC Jack Female Socket	Straight	Free Hanging (In-Line)	155 °C	-55 °C	Brass	BNC to BNC	Jack to Jack	2 GHz	50 Ohms	Female to Female	500	Same Series	Polyethylene (PE) Polytetrafluoroethylene (PTFE)	Silver	Bayonet Lock
