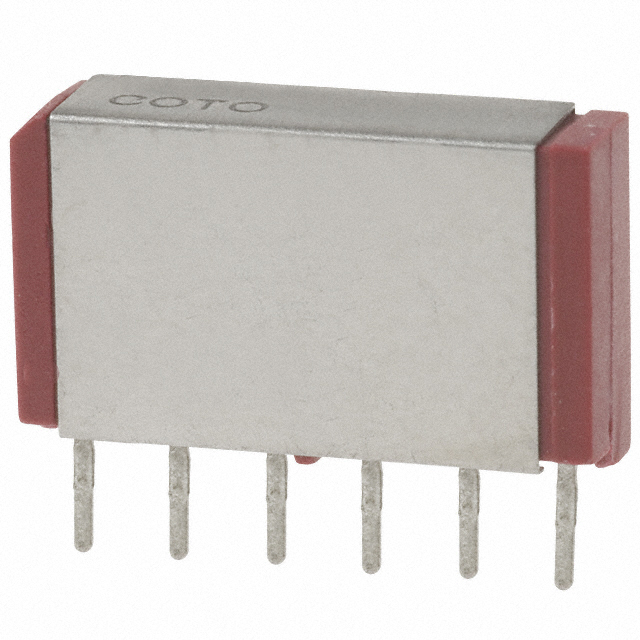

9092-05-10
ActiveCoto Technology
RELAY REED DPST 500MA 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9092-05-10
ActiveCoto Technology
RELAY REED DPST 500MA 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9092-05-10 |
|---|---|
| Coil Current | 13.3 mA |
| Coil Resistance | 375 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 0.5 A |
| Features | EMI Shielded |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.4 VDC |
| Operate Time | 750 µs |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 0.5 ms |
| Switching Voltage | 200 VDC, 200 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 11.66 | |
| 10 | $ 10.93 | |||
| 30 | $ 9.72 | |||
| 60 | $ 9.23 | |||
| 120 | $ 8.74 | |||
| 270 | $ 7.77 | |||
| 510 | $ 7.29 | |||
| 1020 | $ 6.80 | |||
Description
General part information
9092 Series
RELAY REED DPST 500MA 5V
