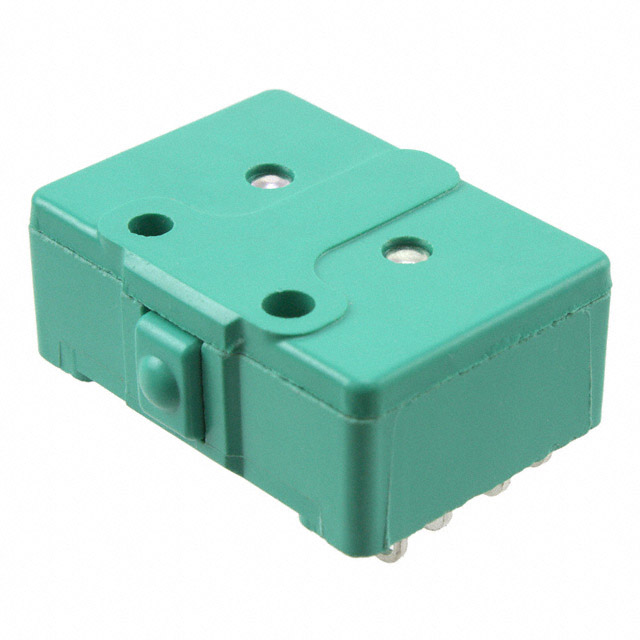

41TB5-3

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION DPDT 10A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION DPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	41TB5-3

Actuator Type	Round (Pin Plunger)
Circuit	DPDT (DB/DM)
Current Rating (Amps)	10 A
Differential Travel	0.6 mm
Differential Travel	0.025 in
Mechanical Life	7000000 Cycles
Mounting Type	Chassis Mount
Operating Force [Max]	1021 gf
Operating Force [Min]	567 gf
Operating Position [custom]	0.185 in
Operating Position [custom]	4.7 mm
Operating Temperature [Max] [custom]	204 °C
Operating Temperature [Min] [custom]	-55 °C
Overtravel	0.25 mm
Overtravel	0.01 in
Pretravel	1.78 mm
Pretravel	0.07 "
Release Force	227 gf
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Differential Travel	Differential Travel	Operating Force [Max]	Operating Force [Min]	Termination Style	Operating Position [custom]	Operating Position [custom]	Overtravel	Overtravel	Voltage Rating - AC	Actuator Type	Mounting Type	Mechanical Life	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Circuit	Current Rating (Amps)	Release Force	Pretravel	Pretravel	Switch Function
Honeywell Sensing and Productivity Solutions 41TB5-3	0.6 mm	0.025 in	1021 gf	567 gf	Solder Lug	0.185 in	4.7 mm	0.25 mm	0.01 in	125 V	Round (Pin Plunger)	Chassis Mount	7000000 Cycles	204 °C	-55 °C	DPDT (DB/DM)	10 A	227 gf	1.78 mm	0.07 "	On-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch DPDT (DB/DM) Chassis Mount
