MLVA04V05C270
ObsoleteEaton - Electronics Division
VARISTOR 8V 20A 0402
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MLVA04V05C270
ObsoleteEaton - Electronics Division
VARISTOR 8V 20A 0402
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MLVA04V05C270 |
|---|---|
| Capacitance @ Frequency | 270 pF |
| Current - Surge | 20 A |
| Energy | 0.05 J |
| Maximum AC Volts [Max] | 4 V |
| Maximum DC Volts [Max] | 5.5 V |
| Mounting Type | Surface Mount, MLCV |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

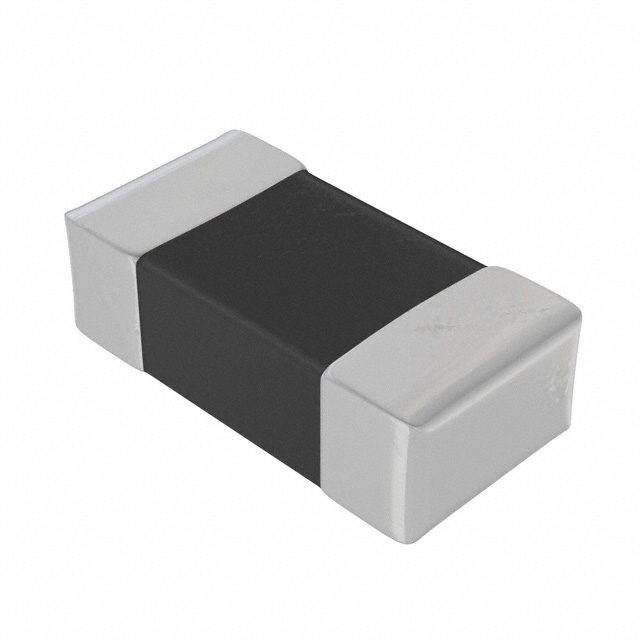

| Package / Case | 0402 (1005 Metric) |
| Varistor Voltage (Max) [Max] | 9.6 V |
| Varistor Voltage (Min) [Min] | 6.4 V |
| Varistor Voltage (Typ) | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MLVB04 Series
8 V 20 A Varistor 1 Circuit Surface Mount, MLCV 0402 (1005 Metric)
