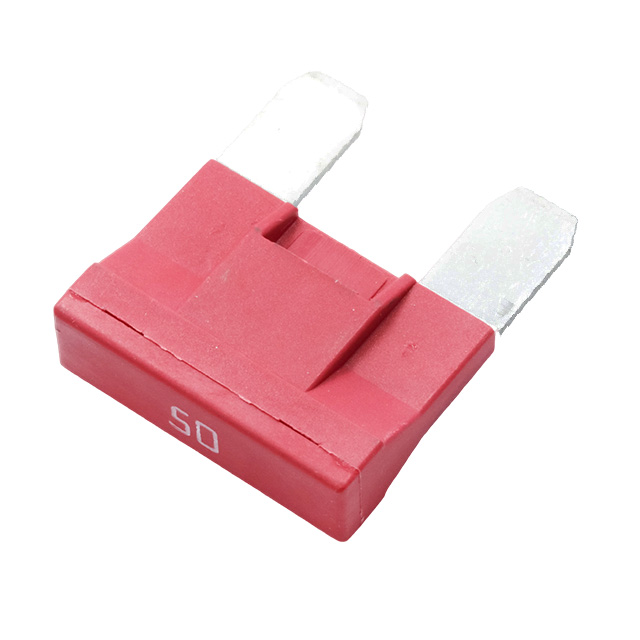

ANX80-UL-50A
ActiveOptiFuse
FUSE AUTO 50A 80VDC BLADE MAX
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANX80-UL-50A
ActiveOptiFuse
FUSE AUTO 50A 80VDC BLADE MAX
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANX80-UL-50A |
|---|---|
| Approval Agency | cURus, UL 248 |
| Breaking Capacity @ Rated Voltage | 1 kA |
| Color | Red |
| Current Rating (Amps) | 50 A |
| DC Cold Resistance | 0.00117 Ohms |
| Fuse Type | Automotive |
| Melting I²t | 10000 |
| Mounting Type | Requires Holder |
| Package / Case | Blade, Max |
| Response Time | Fast Blow |
| Size / Dimension [x] | 30 mm |
| Size / Dimension [x] | 1.181 in |
| Size / Dimension [y] | 8.8 mm |
| Size / Dimension [y] | 0.346 in |
| Size / Dimension [z] | 21.5 mm |
| Size / Dimension [z] | 0.846 in |
| Voltage Rating - DC | 80 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.42 | |
| 10 | $ 8.96 | |||
| 25 | $ 8.29 | |||
| 50 | $ 7.17 | |||
| 100 | $ 6.64 | |||
| 250 | $ 6.19 | |||
| 500 | $ 5.66 | |||
| 1000 | $ 5.37 | |||
Description
General part information
ANX80 Series
50 A AC 80 V DC Fuse Automotive Requires Holder Blade, Max
