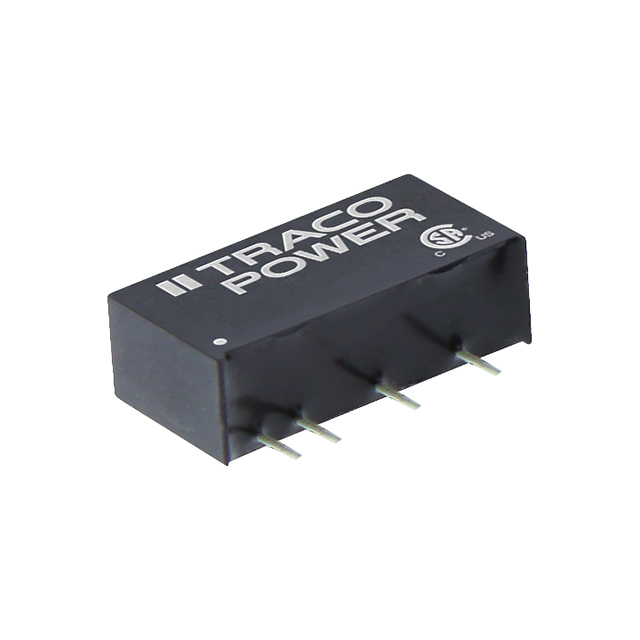

TRA 1-1219

Traco Power

DC DC CONVERTER 9V 1W

Search across all available documentation for this part.

Traco Power

DC DC CONVERTER 9V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Applications	Features	Voltage - Input (Min) [Min]	Package / Case	Voltage - Isolation	Voltage - Input (Max) [Max]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Efficiency	Voltage - Output 1	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)	Current - Output (Max) [Max]
Traco Power TRA 1-2423	Through Hole	0.4 "	10.2 mm	0.77 in	0.24 "	19.5 mm	6.1 mm	ITE (Commercial)	SCP	21.6 V	6-SIP Module 4 Leads	1000 V	26.4 V	Isolated Module	-40 °C	95 °C	2	87 %	15 V	34 mA	-15 V
Traco Power TRA 1-0521	Through Hole	0.4 "	10.2 mm	0.77 in	0.24 "	19.5 mm	6.1 mm	ITE (Commercial)	SCP	4.5 V	6-SIP Module 5 Leads	1000 V	5.5 V	Isolated Module	-40 °C	95 °C	2	84.5 %	5 V	100 mA	-5 V	100 mA
Traco Power TRA 1-1219	Through Hole	0.4 "	10.2 mm	0.77 in	0.24 "	19.5 mm	6.1 mm	ITE (Commercial)	SCP	10.8 V	6-SIP Module 4 Leads	1000 V	13.2 V	Isolated Module	-40 °C	95 °C	1	86.5 %	9 V				110 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 6.39
