XH3B-5042-A

Active

Omron Electronics Inc-EMC Div

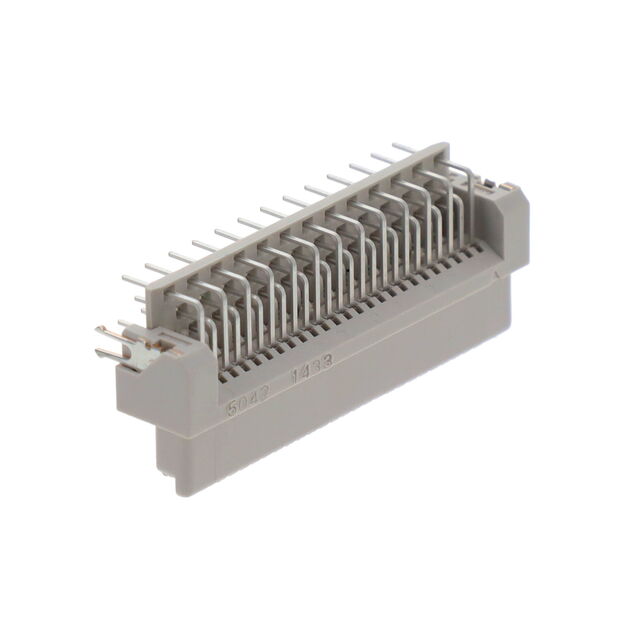

CONN SOCKET 50POS R/A GOLD

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONN SOCKET 50POS R/A GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	XH3B-5042-A

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Mounting Type	Through Hole, Right Angle
Number of Positions	50
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

Part	Pitch [x]	Pitch [x]	Number of Positions	Number of Rows	Height Above Board	Height Above Board	Connector Type	Mounting Type	Mated Stacking Heights	Contact Finish
Omron Electronics Inc-EMC Div XH3B-3041-A	0.05 in	1.27 mm	30	2	9.3 mm	0.366 in	Outer Shroud Contacts Socket	Through Hole	12 mm 14 mm 16 mm	Gold
Omron Electronics Inc-EMC Div XH3B-3042-A	0.05 in	1.27 mm	30	2			Outer Shroud Contacts Socket	Through Hole Right Angle		Gold
Omron Electronics Inc-EMC Div XH3B-5042-A	0.05 in	1.27 mm	50	2			Outer Shroud Contacts Socket	Through Hole Right Angle		Gold
Omron Electronics Inc-EMC Div XH3B-0141-A	0.05 in	1.27 mm	100	2	9.3 mm	0.366 in	Outer Shroud Contacts Socket	Through Hole	12 mm 14 mm 16 mm	Gold
Omron Electronics Inc-EMC Div XH3B-4042-A	0.05 in	1.27 mm	40	2			Outer Shroud Contacts Socket	Through Hole Right Angle		Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Connector Socket, Outer Shroud Contacts Through Hole, Right Angle Gold
