EVQ8633B-H-LE-00A

Active

MONOLITHIC POWER SYSTEMS (MPS)

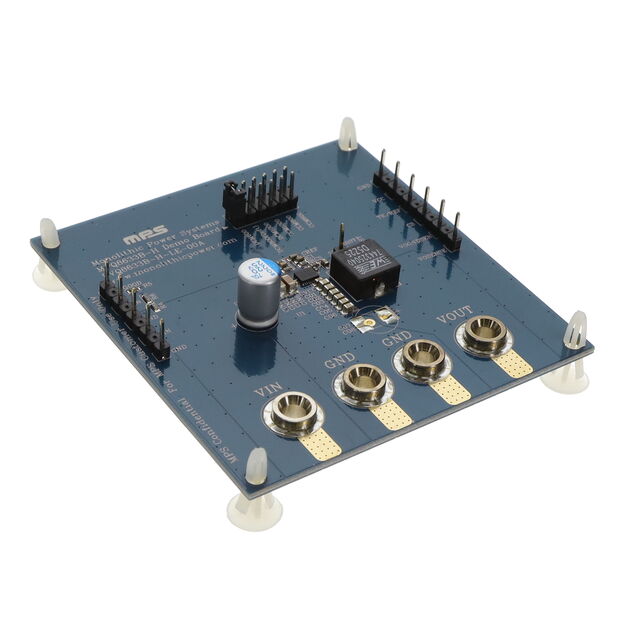

EVAL BOARD FOR MPQ8633B-H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EVQ8633B-H-LE-00A

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVAL BOARD FOR MPQ8633B-H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EVQ8633B-H-LE-00A

Board Type	Fully Populated
Current - Output	20 A
Main Purpose	DC/DC, Step Down
Outputs and Type	Non-Isolated
Outputs and Type	1
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	MPQ8633B-H
Voltage - Input [Max]	16 V
Voltage - Input [Min]	8 V
Voltage - Output	1 V

MPQ8633 Series

Part	Voltage - Input (Max) [Max]	Function	Frequency - Switching [Min]	Frequency - Switching [Max]	Voltage - Output (Min/Fixed)	Voltage - Output (Max) [Max]	Topology	Mounting Type	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Number of Outputs	Voltage - Input (Min) [Min]	Supplier Device Package	Current - Output	Frequency - Switching	Main Purpose	Voltage - Output	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Outputs and Type	Outputs and Type	Supplied Contents	Board Type	Utilized IC / Part	Grade	Qualification
MONOLITHIC POWER SYSTEMS (MPS) MPQ8633BGLE-Z	16 V	Step-Down	600 kHz	1 MHz	0.6 V	5.5 V	Buck	Surface Mount	Positive	-40 °C	125 ¯C	Adjustable	1	2.7 V	21-QFN (3x4)	20 A
MONOLITHIC POWER SYSTEMS (MPS) MPQ8633AGL-P	16 V	Step-Down			0.6 V	5.5 V	Buck	Surface Mount	Positive	-40 °C	125 ¯C	Adjustable	1	4 V	20-QFN (3x4)	12 A	1 MHz 600 kHz 800 kHz
MONOLITHIC POWER SYSTEMS (MPS) MPQ8633A-HGLE-P	16 V	Step-Down			0.6 V	5.5 V	Buck	Surface Mount	Positive	-40 °C	125 ¯C	Adjustable	1	4 V	21-QFN (3x4)	12 A	1 MHz 600 kHz 800 kHz
MONOLITHIC POWER SYSTEMS (MPS) MPQ8633BGLE-P	16 V	Step-Down	600 kHz	1 MHz	0.6 V	5.5 V	Buck	Surface Mount	Positive	-40 °C	125 ¯C	Adjustable	1	2.7 V	21-QFN (3x4)	20 A
MONOLITHIC POWER SYSTEMS (MPS) MPQ8633AGL-Z	16 V	Step-Down			0.6 V	5.5 V	Buck	Surface Mount	Positive	-40 °C	125 ¯C	Adjustable	1	2.7 V	20-QFN (3x4)	12 A	1 MHz 600 kHz 800 kHz
MONOLITHIC POWER SYSTEMS (MPS) MPQ8633B-HGLE-P	16 V	Step-Down			0.6 V	5.5 V	Buck	Surface Mount	Positive	-40 °C	125 ¯C	Adjustable	1	4 V	21-QFN (3x4)	20 A	1 MHz 600 kHz 800 kHz
MONOLITHIC POWER SYSTEMS (MPS) EVQ8633B-H-LE-00A																20 A		DC/DC Step Down	1 V	Buck	16 V	8 V	Non-Isolated	1	Board(s)	Fully Populated	MPQ8633B-H
MONOLITHIC POWER SYSTEMS (MPS) MPQ8633AGLE-P	16 V	Step-Down	600 kHz	1 MHz	0.6 V	5.5 V	Buck	Surface Mount	Positive	-40 °C	125 ¯C	Adjustable	1	2.7 V	21-QFN (3x4)	12 A
MONOLITHIC POWER SYSTEMS (MPS) MPQ8633A-HGLE-Z	16 V	Step-Down			0.6 V	5.5 V	Buck	Surface Mount	Positive	-40 °C	125 ¯C	Adjustable	1	2.7 V	21-QFN (3x4)	12 A	1 MHz 600 kHz 800 kHz											Automotive	AEC-Q100
MONOLITHIC POWER SYSTEMS (MPS) MPQ8633AGLE-Z	16 V	Step-Down	600 kHz	1 MHz	0.6 V	5.5 V	Buck	Surface Mount	Positive	-40 °C	125 ¯C	Adjustable	1	2.7 V	21-QFN (3x4)	12 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 25.00

Description

General part information

MPQ8633 Series

MPQ8633B-H - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
