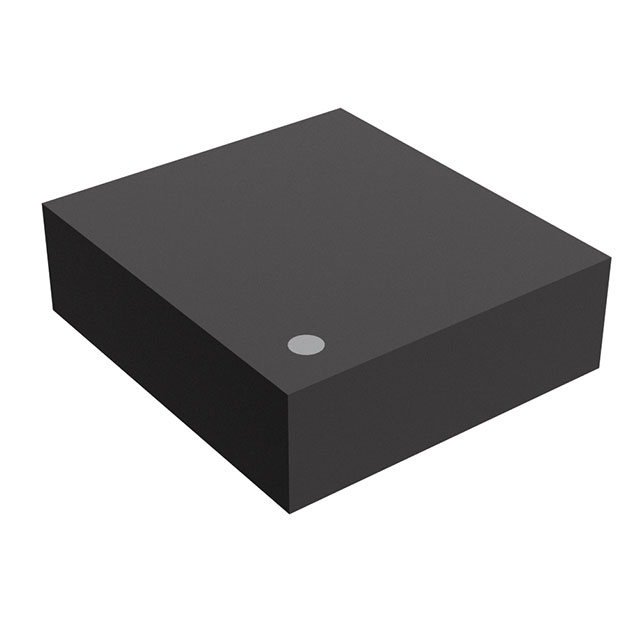

RP401K541B-TR
ActiveNisshinbo Micro Devices Inc
IC REG BOOST 5.4V 500MA 6DFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RP401K541B-TR
ActiveNisshinbo Micro Devices Inc
IC REG BOOST 5.4V 500MA 6DFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RP401K541B-TR |
|---|---|
| Current - Output | 500 mA |
| Frequency - Switching | 1.2 MHz |
| Function | Step-Up |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | DFN(PL)1820-6 |
| Synchronous Rectifier | False |
| Topology | Boost |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 0.6 V |
| Voltage - Output (Min/Fixed) | 5.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.60 | |
| 10000 | $ 0.58 | |||
Description
General part information
RP401 Series
Boost Switching Regulator IC Positive Fixed 5.4V 1 Output 500mA 6-UFDFN Exposed Pad
